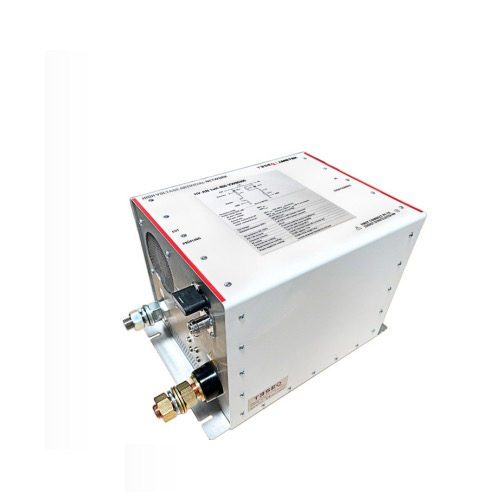

AMETEK CTS HV-AN 1uH-800-VW80300 High Voltage Artificial Network (500 VRMS; 1000 VRMS; 1 µH; 800 ARMS)

Frequency range: 100 kHz to 100 MHz

Power ratings (EUT/AE)

AC max. voltage: 500 VRMS

DC max. voltage: 1000 VRMS

Current max. :

Passive, cooling (Fan) off: 300 ARMS (CW), 450 ARMS (for 15 min)

Active, cooling (Fan) on: 800 ARMS (CW) (for 2 hours), see user manual, TAMB ≤ 25 °C (cooling >20 min with EUT current off and fan on)

Test voltage: 1500 VDC 2 sec.

Simulated impedance (EUT):

1 µH || 47.6 Ω ± 20% (jumper connected)

1 µH || 50 Ω ± 20% (jumper removed)

DC resistance (AE/EUT): 0.5 mΩ

EUT/AE sockets: 16 mm bolt with fine screw nut (M16x1.5)

Connector chassis: 16 mm bolt with screw nut (M16)

RF socket: Type-N, jack/ female 50 Ω

Connector for cooling: coaxial connector (male, DC+ on inner pin)

Requirements for cooling: 12 VDC, approx. 1.1 A

Power supply for cooling: 12 VDC/ 2.5 A, length 1.8 m, coaxial connector (female) 5.5 x 2.5 mm

Size (L X W x D): 365 mm x 203 mm x 203 mm

Weight: approx. 6.5 kg

Classification: Indoor use only

Operating temperature: 0 °C to +30 °C

Storage temperature: -10 °C to +60 °C

Relative humidity: up to 90 % (no moisture condensation)
