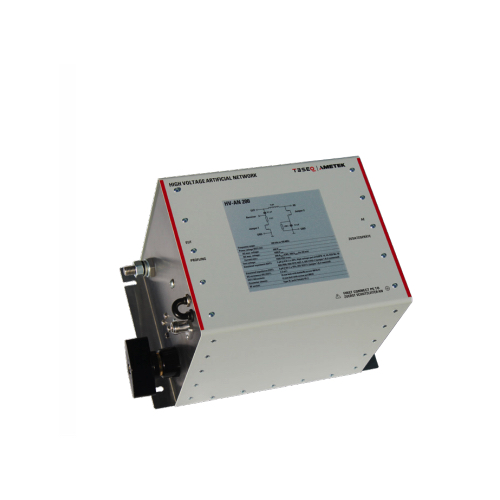

AMETEK CTS HV-AN 200 High Voltage Artificial Network (500 VRMS; 1000 VRMS; 5 µH; 200 ARMS)

Frequency range: 100 kHz to 100 MHz

Power ratings (EUT/AE)

AC max. voltage: 500 VRMS

DC max. voltage: 1000 VRMS

Current max.: 200 ARMS (CW), 300 ARMS (for 20 min)

Test voltage: 1500 VDC 2 sec.

Simulated impedance (EUT):

5 µH || 47.6 Ω ± 20%, High voltage part of CISPR 12, 25, ECE No. 10 R05/R06, ISO/DTS 7637-4, ISO 11452-1 (jumper 1 & 2 connected)

5 µH || 50 Ω ± 10%, ISO 7637-2 (jumper 1 & 2 removed)

5 µH || 47.6 Ω ± 20%, Low voltage part of CISPR 25, ECE No. 10 R06, ISO 11452-1 (jumper 1 connected, jumper 2 removed, HV-AN 500-option-1µF connected on AE port)

DC resistance (AE/EUT): 2.3 mΩ

EUT/AE sockets: 12 mm bolt with butterfly screw (M12x1)

Connector chassis 12 mm bolt with screw nut (M12)

RF socket: Type-N, jack/ female 50 Ω

Size (L X W x D): 365 mm x 203 mm x 203 mm

Weight: approx. 7.2 kg

Classification: Indoor use only

Operating temperature: 0 °C to +30 °C

Storage temperature: -10 °C to +60 °C

Relative humidity: up to 90 % (no moisture condensation)
