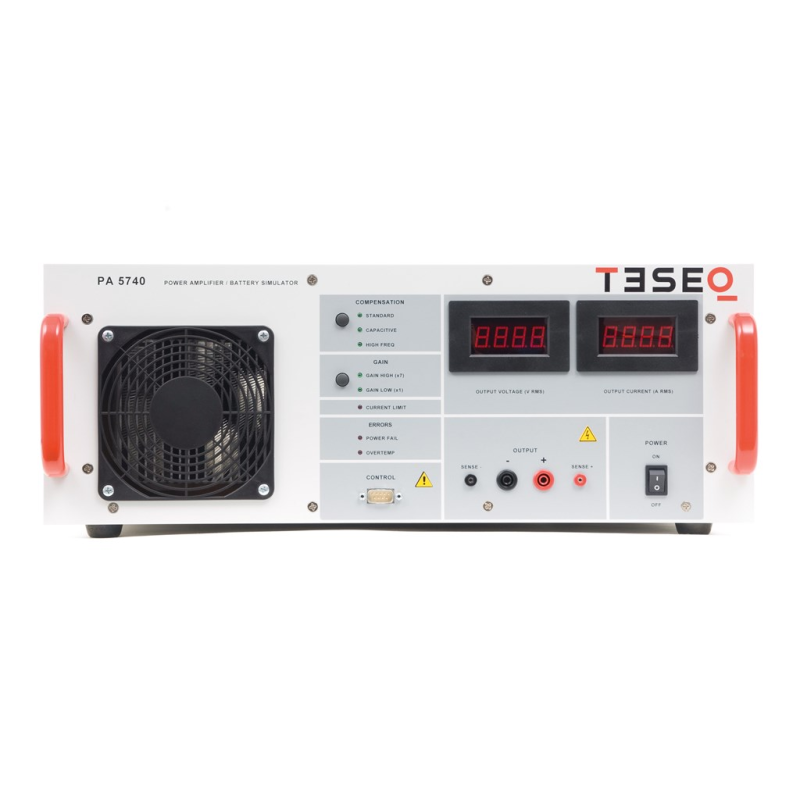

AMETEK CTS PA 5740-100 4-Quadrant Amplifier (-60 ... +60 Vpk, 0 ... 10 A, 180 kHz; 100 V)

Output voltage (cont.:) -60 ... +60 VDC ± 2%

Output current (cont.): 0 ... 10A

Bandwith (-3dB): DC ... 180kHz, full signal

Slew rate typical: < 10us (STD mode) / < 3us (HF mode)

Source impedance; < 10 mΩ

Compensation Modes: CAP: DC ... 3kHz / STD: DC ... 40 kHz / HF: up to 150 kHz

Recovery time: 90 % of max. excursion within 25 µs

Sense Lines: Yes, voltage drop compensation in cabling, max 4 VDC (AC up to to approx. 4 kHz)

Ripple voltage ( noise): < 10 mV rms up to min. 400 Hz

Safety: Over temperatur switch

Interfaces:

1 x ± 10 V analoge input voltage (BNC / D-Sub)

1 x 10 V anologue input current (BNC / D-Sub)

Display: 2x LED display 3.5 digit, red (voltage and current)

Cooling: Temperature controlled air cooling

Power Mains: 100 V ± 10 % / L, N, PE

Fusage: 12.5 A / 6.3 A

Housing / Compartment: 19" / 4 HU

Dimension: 188 x 484 x 560 mm

Weight: 35 kg

Operating temperature: 10 ... 40 °C

Humidity: 10 ... 90%, non-condensing

Pressure: 860 mbar ... 1060 mbar
