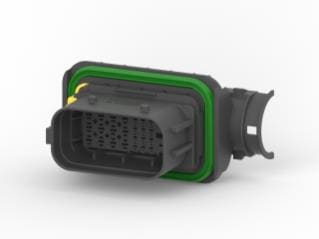

AMP Connectors - TE Connectivity 1-2112041-2 Tab Housing 26POS, MIXED, TAB HSG, ASSY, SEALED
Manufacturer: AMP Connectors - TE Connectivity Model: 1-2112041-2 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Color: Black
Pitch: 4 mm, 6 mm
Width: 62.75 mm
Gender: Plug (Male)
Height: 50.5 mm
Length: 92 mm
Application: Wire to Wire
Row Spacing: 6 mm
Unit Weight: 61.543 g
Contact Gender: Without Pin Contacts
Mounting Angle: Right Angle
Mounting Style: Mounting Flange
Number of Rows: 4 Row
Voltage Rating: 42 VDC
Housing Material: Polybutylene Terephthalate (PBT)
Locking Mechanism: On the terminal
Ingress Protection: IP69K
Flammability Rating: UL 94 V-0
Number of Positions: 26 Position
Maximum Operating Temperature: + 140 C
Minimum Operating Temperature: - 40 C
