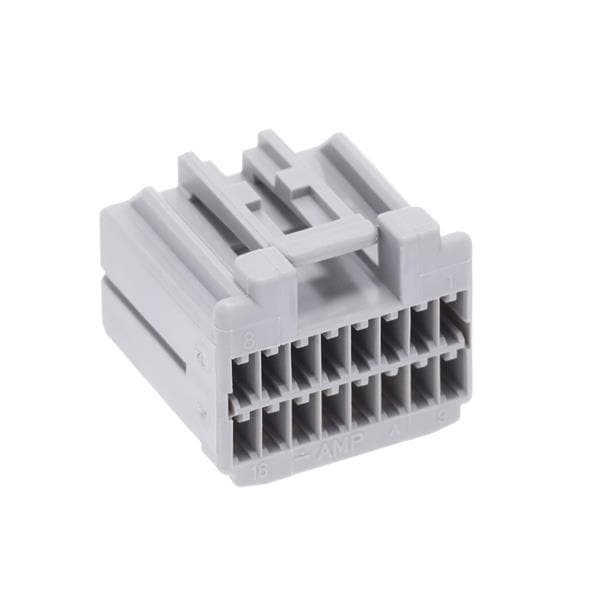

Color: Gray
Pitch: 2.5 mm (0.098 in)
Width: 21.5 mm
Gender: Plug (Male)
Height: 18.7 mm
Length: 21 mm
Application: Wire to Board/Device
Row Spacing: 2.54 mm
Unit Weight: 4.100 g
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 12 VDC
Wire Gauge Max: 18 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 22 AWG to 18 AWG
Locking Mechanism: Integrated in Housing
Termination Style: Crimp
Number of Positions: 16 Position
Maximum Operating Temperature: + 120 C
Minimum Operating Temperature: - 40 C
