Color: Black
Pitch: 5 mm (0.197 in)
Width: 24.9 mm
Gender: Plug (Male)
Height: 27.6 mm
Length: 33.2 mm
Application: Signal
Unit Weight: 8.440 g
Contact Type: Socket
REACH - SVHC: Details
Contact Gender: Without Socket Contacts
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 1 Row
Wire Gauge Max: 16 AWG
Wire Gauge Min: 24 AWG
Housing Material: Polybutylene Terephthalate (PBT)
Wire Gauge Range: 24 AWG to 16 AWG
Lock Mate Feature: Integrated in Housing
Termination Style: Crimp
Flammability Rating: UL 94 V-2
Number of Positions: 4 Position

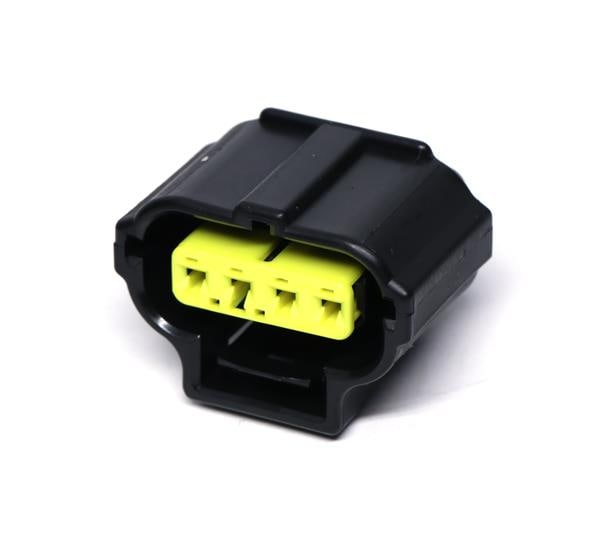

Description/Function: Econoseal, Housing for Female Terminals
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 30 C
