Color: Green
Pitch: 2.54 mm (0.1 in)
Width: 17.6 mm
Gender: Receptacle (Female)
Height: 39.9 mm
Length: 38.3 mm
Application: Signal
Row Spacing: 5.2 mm
Unit Weight: 11.296 g
Contact Type: Socket
Contact Gender: Without Socket Contacts
Mounting Angle: Right Angle
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Voltage Rating: 24 VDC
Wire Gauge Max: 20 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Gold
Housing Material: Polyamide (PA)
Wire Gauge Range: 22 AWG to 20 AWG
Lock Mate Feature: On the terminal
Termination Style: Crimp
Number of Positions: 24 Position

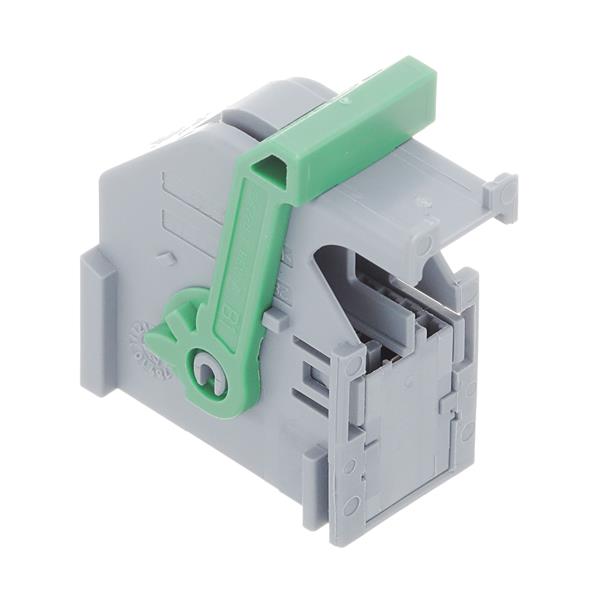

Description/Function: MQS, Housing for Female Terminals
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 30 C
