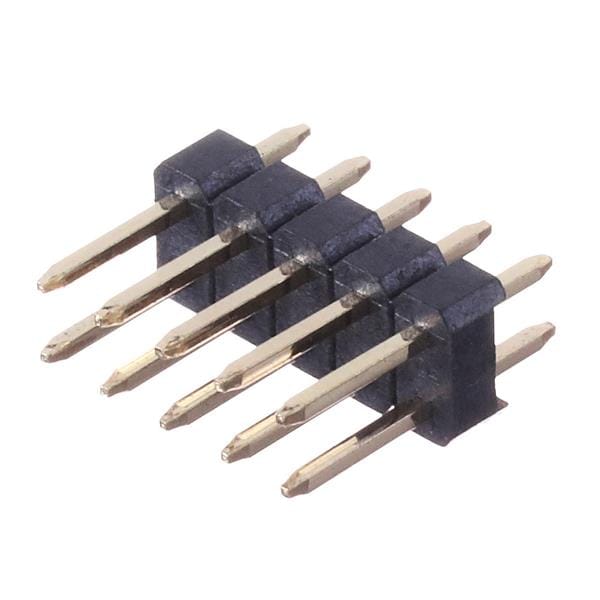

Amphenol Commercial Products G800LQ591018EU Pin Strip Pin Header 2.54mm Pitch STR DIP,2x5Pin,Full G/F,LCP,6.0mm*2.54mm*3.0mm,Color-Black

Pitch: 2.54 mm (0.1 in)

Row Spacing: 2.54 mm (0.1 in)

Housing Color: Black

Latching Type: Unlatched

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pin

Mating Post Length: 6 mm (0.236 in)

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position

Termination Post Length: 3 mm (0.118 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 25 C
