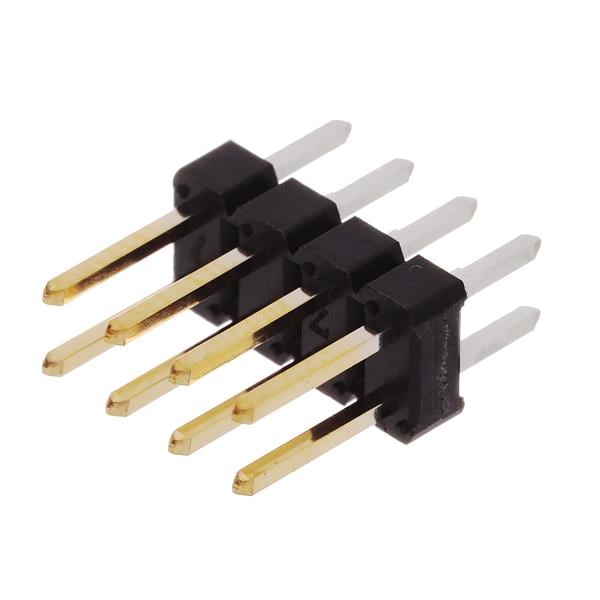

Pitch: 2.54 mm (0.1 in)
Application: Board-to-Board
Row Spacing: 2.54 mm (0.1 in)
Unit Weight: 642 mg
Housing Color: Black
Contact Gender: Pin (Male)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 2 Row
Voltage Rating: 1.5 kV
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Thermoplastic (TP)
Termination Style: Solder Pin
Mating Post Length: 5.84 mm (0.23 in)
Flammability Rating: UL 94 V-0
Number of Positions: 8 Position
Insulation Resistance: 5 GOhms
Termination Post Length: 3.81 mm (0.15 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 65 C
