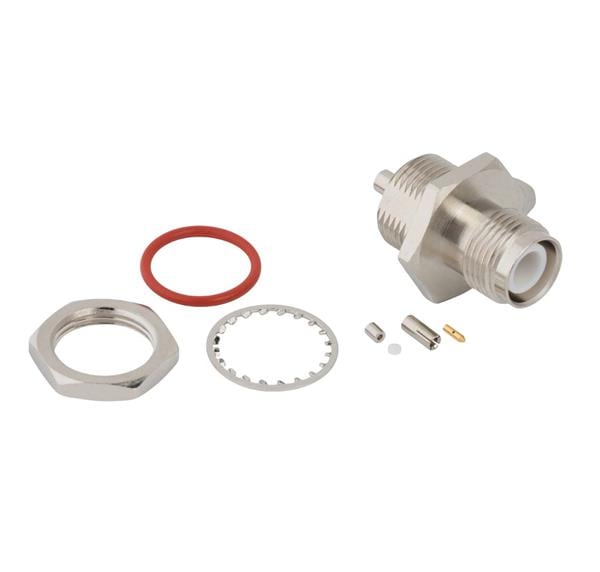

Gender: Jack (Socket)
Polarity: Reverse
Impedance: 50 Ohms
RF Series: TNC
Body Style: Bulkhead
Cable Type: 1.13 mm
Orientation: Straight
Mating Cycles: 500 Cycle
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 9 GHz
Termination Style: Crimp
Coupling Mechanism: Threaded
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
