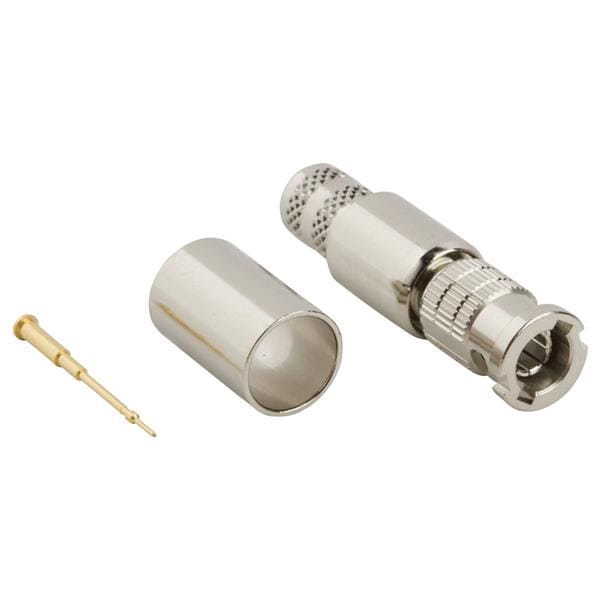

Gender: Plug (Pin)
Polarity: Standard
Impedance: 75 Ohms
Isolation: Non-Isolated
RF Series: HD-BNC
Body Style: Straight
Cable Type: Belden 4794R
Body Finish: Nickel
Orientation: Straight
Unit Weight: 9.469 g
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Phosphor Bronze
Maximum Frequency: 18 GHz
Termination Style: Crimp
Coupling Mechanism: Bayonet
Contact Termination: Crimp
Insulation Resistance: 10 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
