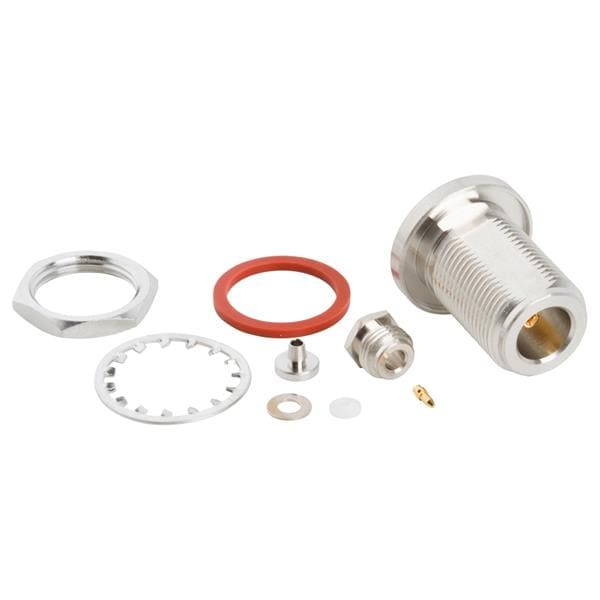

Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: N Type
Cable Type: RG-174, 188A, 316, Belden 7805A
Body Finish: Copper-Tin-Zinc Alloy
Orientation: Straight
Unit Weight: 38.100 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500
Mounting Style: Bulkhead - Rear Mount
Voltage Rating: 1.5 kV
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 11 GHz
Termination Style: Clamp
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
