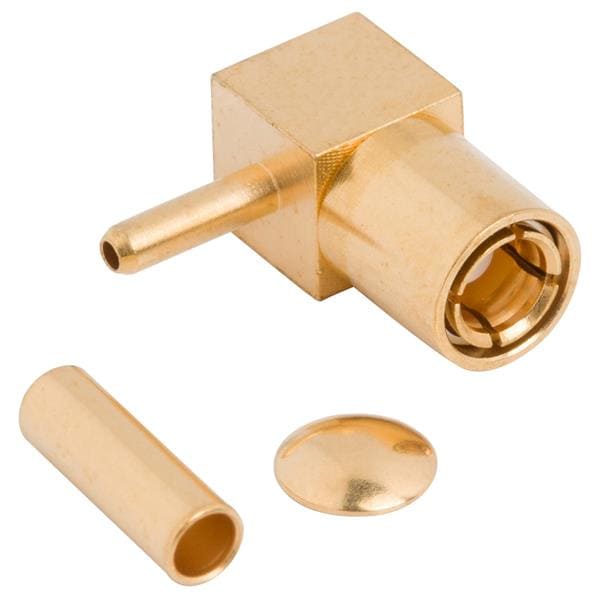

Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMB
Body Style: Right Angle
Cable Type: RG-178, 178A, 196, M17/93
Body Finish: Gold
Orientation: Right Angle
Unit Weight: 3.837 g
REACH - SVHC: Details
Body Material: Zinc Die Cast
Mating Cycles: 500
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 335 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 4 GHz
Termination Style: Crimp
Coupling Mechanism: Slide On
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
