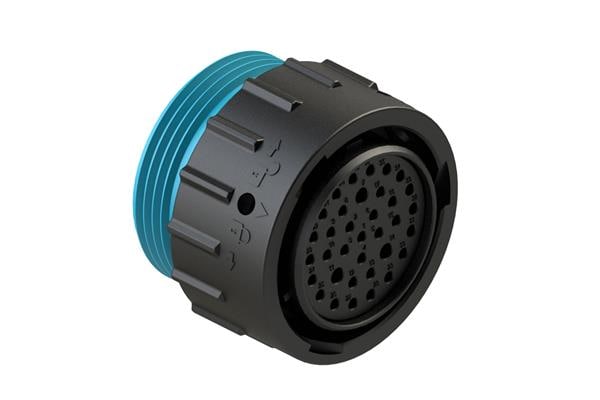

Amphenol SINE Systems AHDP06-24-35SR-WTA Connectors PLUG 24 SZ35 SOCKT STD

Color: Black

Gender: Plug (Male)

Length: 38.3 mm

Insulation: Insulated

Unit Weight: 70.362 g

Contact Gender: Socket (Female)

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Wire Gauge Max: 14 AWG, 16 AWG

Wire Gauge Min: 20 AWG, 22 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 22 AWG to 16 AWG, 20 AWG to 14 AWG

Termination Style: Crimp

Mating Part Number: AHDP04-24-35P

Number of Positions: 35 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
