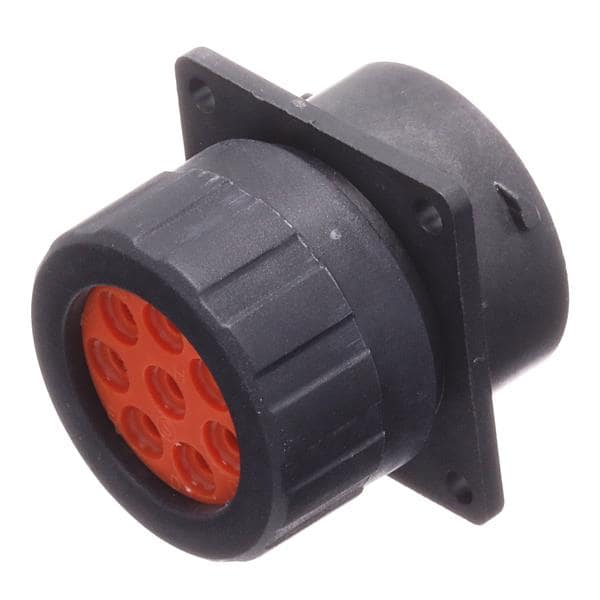

Amphenol SINE Systems RTS018N8SHEC03 Connectors Sq Flg Rcpt w endcap 8 POS SZ 18 Socket

Width: 33.3 mm

Height: 35 mm

Length: 33.3 mm

Diameter: 31 mm

IP Rating: IP67, IP69k

Shell Size: 18

Wire Gauge: 14 AWG to 12 AWG

Shell Style: Receptacle

Mating Style: Bayonet

Accessory Type: Square Flange Receptacle

Contact Gender: Socket (Female)

Current Rating: 23 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Cable

Voltage Rating: 500 V

Housing Material: Thermoplastic

Termination Style: Crimp

Insert Arrangement: 18-8

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position
