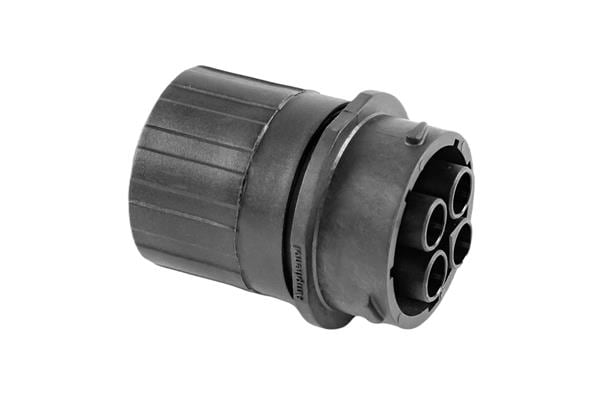

Amphenol SINE Systems RTS1BS18N4SHEC03 Receptacles Receptacle, Inline, 4 Position, Female, Shell Size 18, Silicone Seal, and End Cap with Individual Wire Sealing
ModelRTS1BS18N4SHEC03
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Diameter: 34.7 mm
IP Rating: IP67, IP69K
Shell Size: 18
Wire Gauge: 8 AWG
Shell Style: In-Line
Mating Style: Threaded
Mating Cycles: 500 Cycles
Current Rating: 56 A
Mounting Angle: Straight
Mounting Style: Cable
Shell Material: Thermoplastic (TP)
Voltage Rating: 600 VAC, 800 VDC
Housing Material: Thermoplastic (TP)
Termination Style: Crimp
Flammability Rating: UL 94 V-0
Number of Positions: 4 Position
