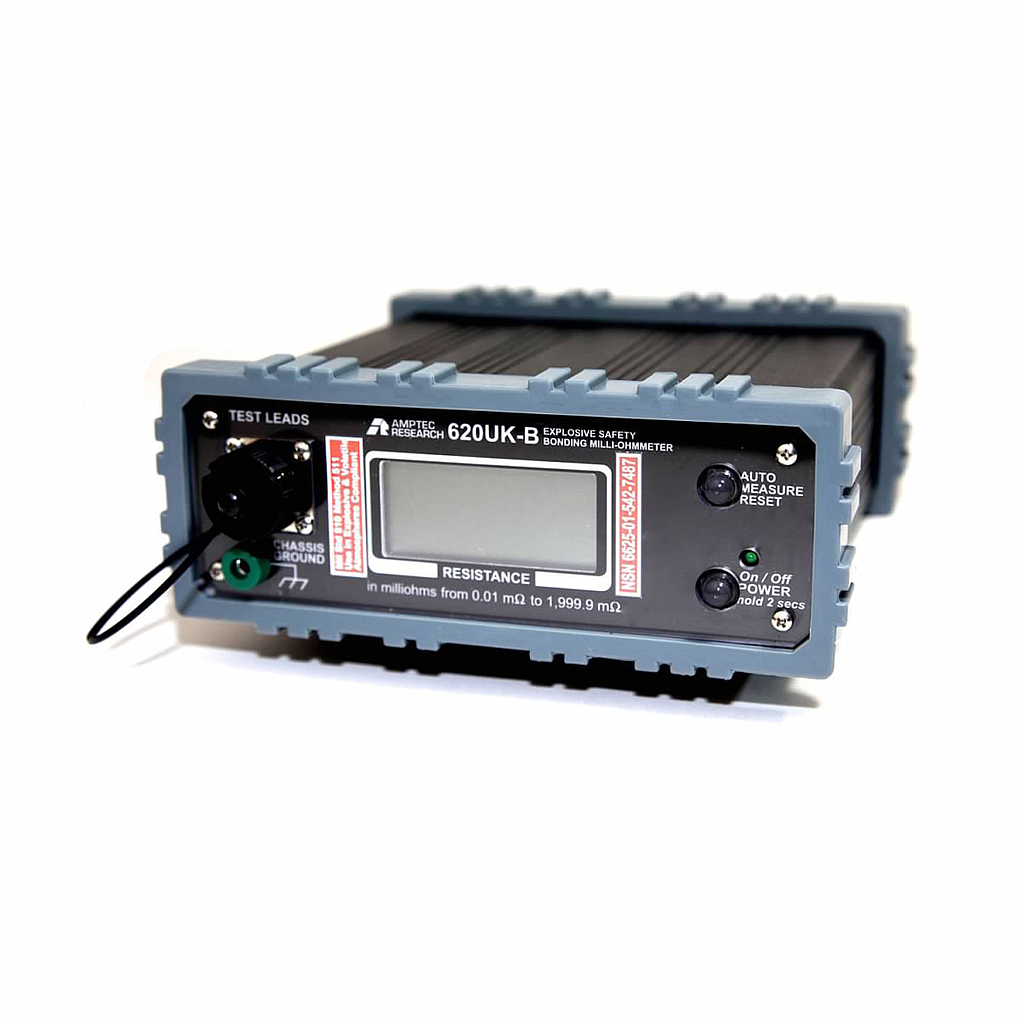

AMPTEC RESEARCH 620UK-B Intrinsically Safe Electrical Bond Tester (2 mΩ, 200 mΩ)
Manufacturer: AMPTEC RESEARCH Model: 620UK-B P/N: 620 UKB - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Range, Resolution, Accuracy, and Current Levels
Range: 200 mΩ
Nominal Current: 100 mA
Resolution: .01 mΩ
Accuracy: ± .05% of reading & range
Range: 2 Ω
Nominal Current: 100 mA
Resolution: .1 mΩ
Accuracy: ± .05% of reading & range
General Specifications
Terminal: 5-pin Male Trident
Display: 4 1/2 digit LCD
Update: 1 reading per 3 seconds
Power: 4ea AA 1.5 VDC alkaline batteries
Weight (Unit Only):3.2 lbs.
Dimensions: 7.69″ x 7.56″ x 3″
Max. Internal Voltage: 6 VDC
Open Circuit: ~5 VDC
Operating Temperature Range: -20° to 50° C
Max. Input Voltage: 250 VDC
Temperature Coefficient: ± .0025% per 1° C
