Gain: 16.5 dB
Technology: GaAs
Unit Weight: 135 mg
REACH - SVHC: Details
Mounting Style: SMD/SMT
Test Frequency: 18 GHz to 28 GHz

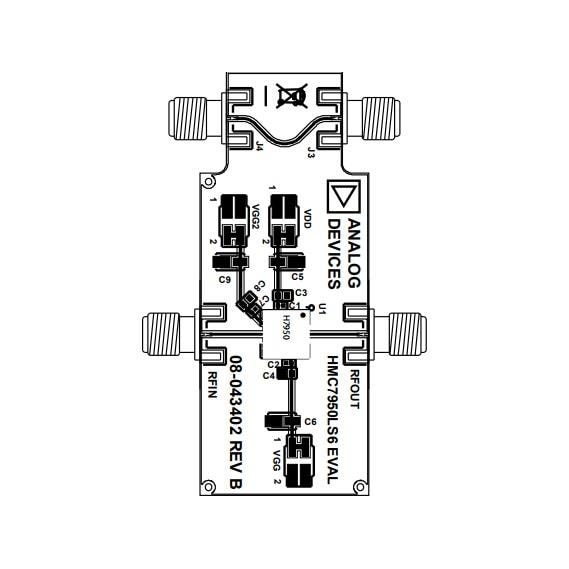

Development Kit: EV1HMC7950LS6
Input Return Loss: 19 dB
NF - Noise Figure: 2.8 dB
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Operating Frequency: 2 GHz to 28 GHz
Supply Voltage - Max: 7 V
Supply Voltage - Min: 3 V
Pd - Power Dissipation: 1.55 W
Operating Supply Current: 64 mA
Operating Supply Voltage: 3 V to 7 V
P1dB - Compression Point: 14.5 dBm
OIP3 - Third Order Intercept: 24 dBm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
