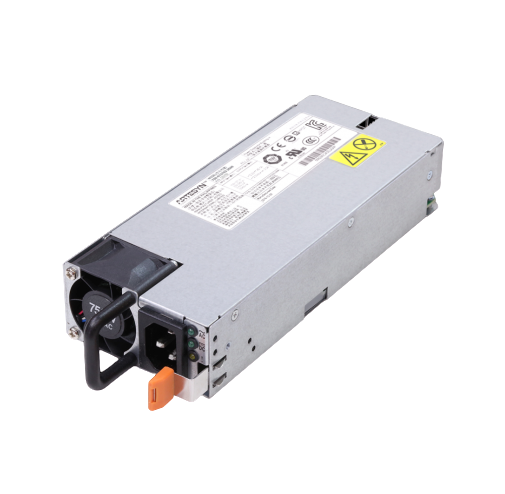

Artesyn CSV750BP-3 Front-end Power Supply (12.2V/61.5A; 12V/2.5A; 750W)
Manufacturer: Artesyn Model: CSV750BP-3 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input range: 90 - 264 Vac: 750 W
Frequency: 47 Hz to 63 Hz
Max input current: 8.6 A @ 100 Vac
Main DC Output
Nominal setting: MIN: -0.20% /NOM: 12.2/ MAX: 0.20%
Total output regulation range: MIN: 11.59V / MAX: 12.81 V
Output current: MIN: 1.0 A/ MAX: 61.5 A
Standby DC Output
Nominal setting: MIN: -3.5%/ NOM: 12.0/ MAX: +3.5%
Total output regulation range: MIN: 11.4 V/ MAX: 12.6 V
Output current: MIN: 0.0 A/ MAX: 2.5 A
Operating temperature: 5 to 50 °C
Operating relative humidity: +8% to 93%, non-condensing
Nominal Main Output: 12.2 V @ 61.5 A
Standby Output: 12 V @ 2.5 A
Airflow Direction: Standard (forward)
