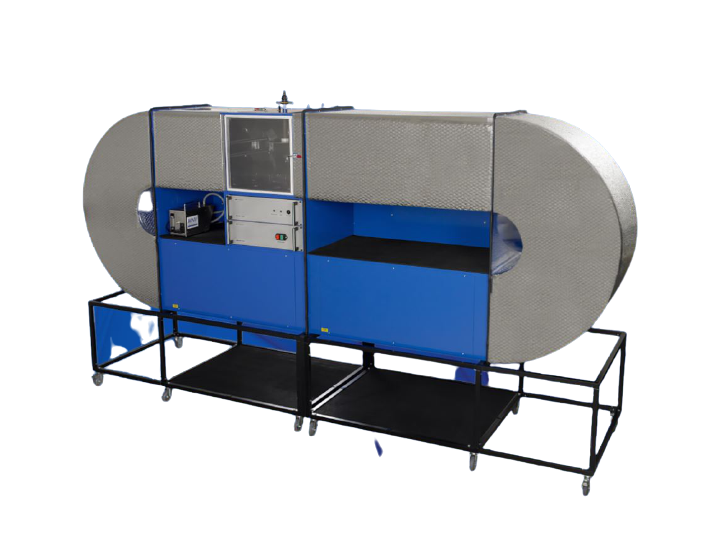

AW Technology 2400 Combined Smoke / Heat Detector Test Tunnel
Manufacturer: AW Technology Model: 2400 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Overall size of tunnel: 3.15m long * 0.86m wide * 1.60m high
Internal cross section of duct: 470mm wide by 370mm high
Working volume cross section for smoke detectors: 350mm * 250mm
Working volume cross section for heat detectors: 350mm * 100mm
Extract via 150mm diameter flexible duct (requires a back draught shutter)
2400 Combined Smoke / Heat Detector Test Tunnel:
This is designed for testing to EN54-7 and EN14604 from room temperature to 55°C, and to EN54-5 with a starting temperature range from 25°C to 80°C. It is capable of carrying out testing for grades A1 to C to EN54-5, including tests from the maximum application temperature for grade C.
