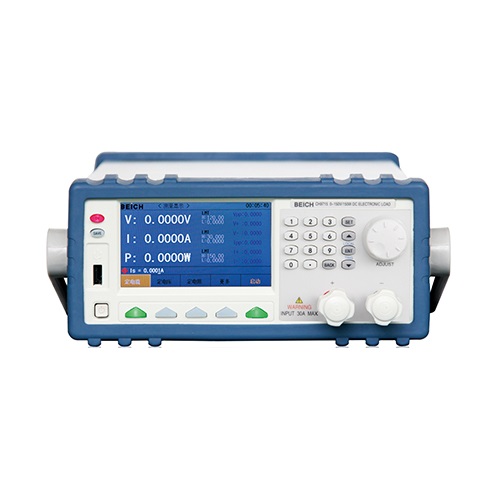

Beich CH9715B Intelligent Program-Controlled DC Electronic Load (0~150V; 0.1mA~60A; 150W)

Rated value:

- Input voltage: 0~150V

- Input current: 0.1mA~60A

- Input power: 150W

Range/ Accuracy/ Resolusion

Load accuracy: 0-9.9999V/ ±(0.05%+0.03%FS)/ 0.1mV

                         10V-99.999V/ ±(0.05%+0.03%FS)/ 1 mV

                         100V-150V/500V/ ±(0.05%+0.03%FS)/ 10mV

                         0-9.9999A/ ±(0.05%+0.05%FS)/ 0.1mA

                        10-30A/60A/ ±(0.05%+0.05%FS)/ 1 mA

CV mode: 1.5V-36V/ ±(0.05%+0.03%FS)/ 0.1mV/1mV

                 1.5V-150V/500V/ ±(0.05%+0.03%FS)/ 10 mV

CC mode: 0-3A/6A/ ±(0.05%+0.05%FS)/ 0.1mA

                 0-30A/60A/ ±(0.05%+0.05%FS)/ 1mA

CR mode: 0.05Ω-5Ω/ ±(0.2%+0.2%FS)/ 0.0001Ω

                 0.5Ω-50Ω/ ±(0.1%+0.1%FS)/ 0.001Ω

                 5Ω-500Ω/ ±(0.1%+0.1%FS)/ 0.01Ω

                 500Ω-5KΩ/ ±(1%+1%FS)/ 0.1Ω

CP mode: 0-50W/ ±(0.1%+0.1%FS)/ mW

                 0-150W/ ±(0.1%+0.1%FS)/ 10mW

                 0-300W/ ±(0.1%+0.1%FS)/ 0.1W

Battery test function

- Input voltage: 2-150V/500V

- Max measurement capacity: 9999AH

- Timer range =1 ~ 4294967295sec (>7 days)

Dynamic test mode:

- Min plus width: 0.1ms

- Max plus width: 999s

- Rising/Falling edge resolution: 0.1ms

- Max Rising/Falling edge time: 6s

List test mode: Rated Voltage, Rated Current, Rated Power, Rated Resistance, Short, Open

Programming test mode

- Sweep type: Current, Voltage, Power

- Critical conditions: V-threshold, DV, Drop
