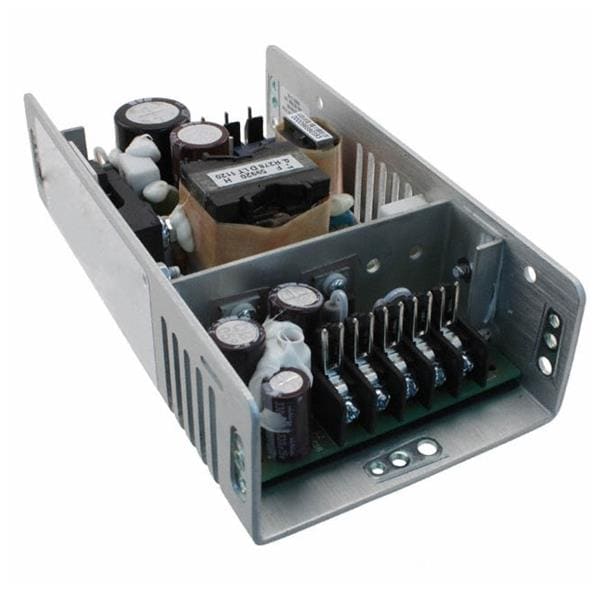

Width: 83.1 mm (3.272 in)
Height: 40.6 mm (1.598 in)
Length: 152.4 mm (6 in)
Industry: Industrial
Approvals: EN60950-1, IEC60950-1, UL/CSA60950-1
Compliance: EN60950-1, IEC60950-1, UL/CSA60950-1
Efficiency: 73 %
Unit Weight: 662.810 g
Output Power: 55 W
Input Voltage: 90 VAC to 264 VAC
Mounting Style: Chassis
Input Frequency: 47 Hz to 63 Hz
Load Regulation: Regulated
Isolation Voltage: 4.242 kVDC
Number of Outputs: 4 Output
Power - Convection: 40 W
Power - Forced Air: 55 W
Open Frame/Enclosed: Open Frame
Output Current-Channel 1: 6 A
Output Current-Channel 2: 1.5 A
Output Current-Channel 3: 500 mA
Output Current-Channel 4: 500 mA
Output Voltage-Channel 1: 5 VDC
Output Voltage-Channel 2: 24 VDC
Output Voltage-Channel 3: - 12 VDC
Output Voltage-Channel 4: 12 VDC
Operating Temperature Range: 0 C to + 70 C
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
