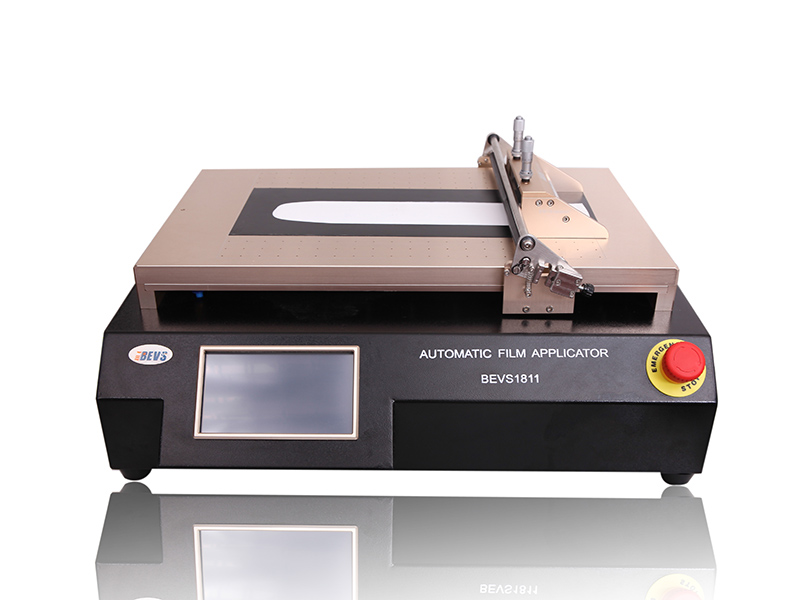

Bevs BEVS 1811/2 Automatic Film Applicator (Vacuum bed)
Manufacturer: Bevs Model: BEVS 1811/2 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Speed: 10-140 / 50-300mm/s, please select the speed when ordering
Stroke Length(Max): 360mm
Test Panel: 420×300mm
Test Platform: Vacuum bed
Bar Coater Capacity: Diameter: 10-13mm/Length: 320mm
Standard: ASTM D823/C
Power: 230±10%, 50/60Hz
Introduction:
BEVS Automatic Film Applicators are made with high precision machined components, sturdy mainframe and heavy duty power train assembly, to ensure long term reliable operation. Consistent drawdown conditions such as speed, flatness, combined with applicator gap and geometry are essential elements to obtain perfectly reproducible samples, eliminating human error and uncertainty.
Software:
Advanced touch screen technology
Film size:A4,A3 and User Defined.
Adjustable speed.
Report output: tab in the coating's name,viscosity,thickness for the report to be output.
Electrically Heated Vacuum Bed
BEVS automatic vacuum applicator is also available with an electrically heated vacuum bed. The bed temperature can be set from ambient +5°C to + 150°C and temperature is uniform over the whole bed.
Minimum temperature: Ambient +5ºC
Maximum temperature: +150ºC
Temperature accuracy: 1ºC
