Direct access to our certified experts
Output Voltage: 1 – 36 V
Output Current: 0 – 10 A
Ripple and Noise: ≤5mV(Vrms), ≤50 mV(Vp-p), ≤30mA(Irms)
Voltage Meter: 3-Digit LED Display
Current Meter: 3-Digit LED Display
Input Voltage: 100-240 VAC 50/60 Hz
Dimensions: 200 x 90 x 208 mm
Weight: 2.4 kg
Supplied accessories: Power cord, instruction manual, application software CD, USB cable, remote control connector

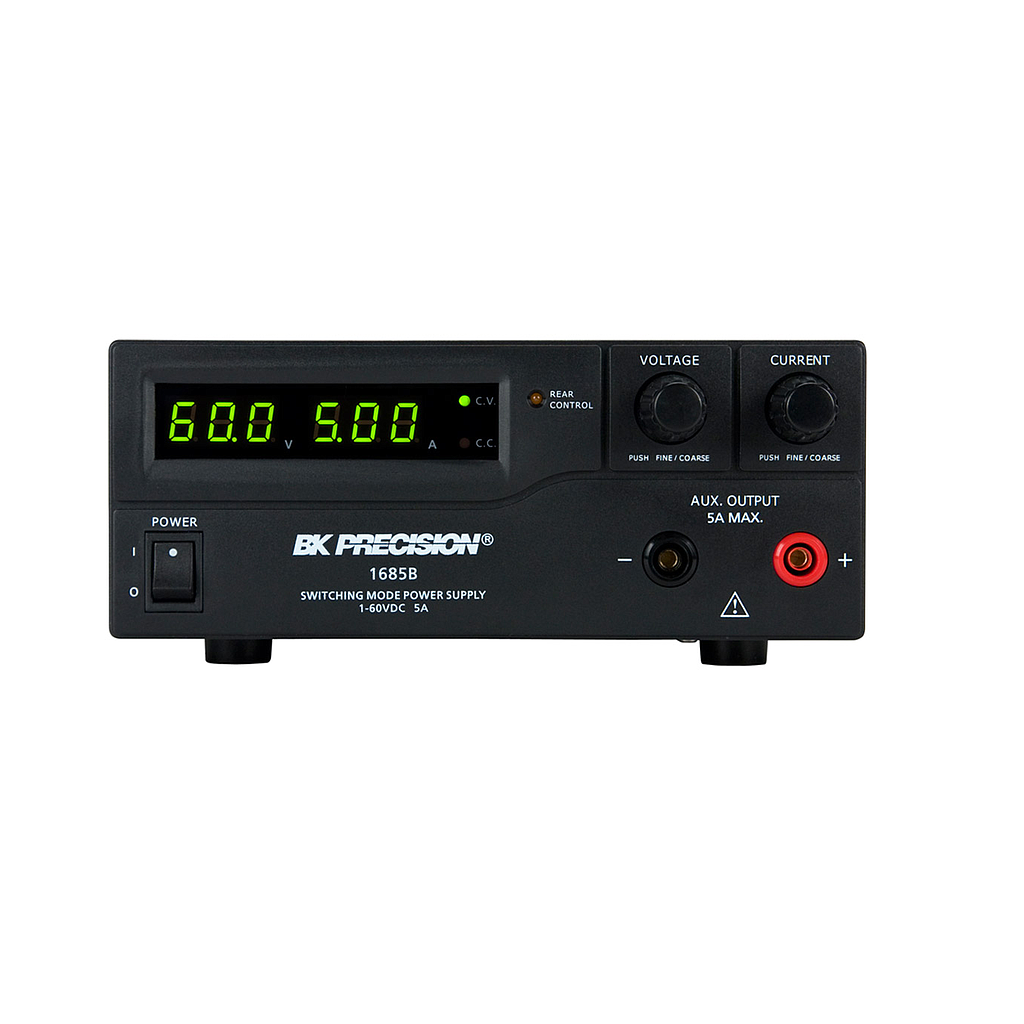

The B&K Precision 1685B, 1687B, and 1688B switching mode DC power supplies provide various configurations of high output voltage or high output current in a small, lightweight form factor. In addition to their constant voltage (CV) and constant current (CC) modes, these high efficiency DC power supplies offer unique preset and remote control modes. Up to three different presets of voltage and current values can be saved for quick recall through a rear switch. For remote control, an analog remote control terminal is accessible on the rear, or use the USB interface to communicate with the power supply via PC software or remote commands. These features make the 1685B, 1687B, and 1688B suitable for a wide range of applications including production testing, telecommunications, R&D, electronic field service, and university labs.
| Model Guide | |||
|---|---|---|---|
| Model | 1685B | 1687B | 1688B |
| Output Voltage | 1-60 V | 1-36 V | 1-18 V |
| Output Current | 0-5 A | 0-10 A | 0-20 A |
