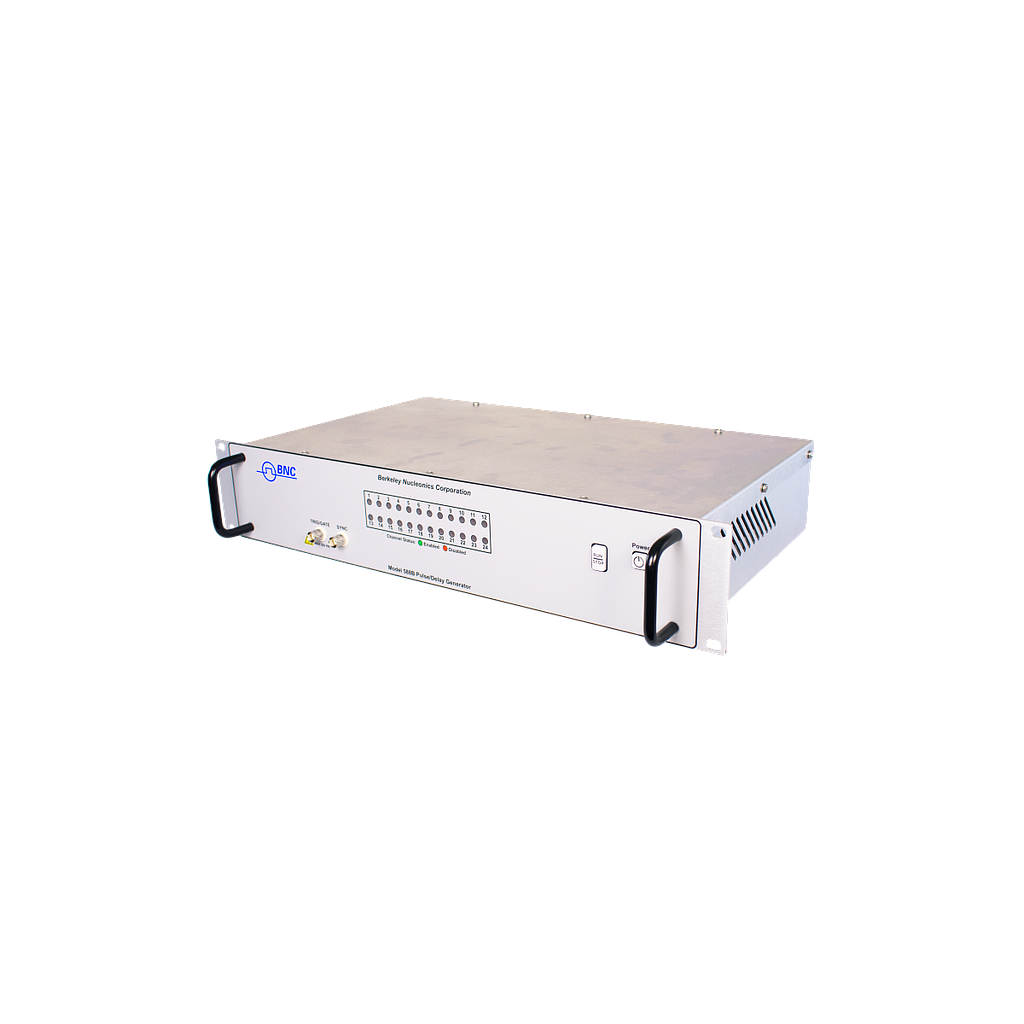

Delay Range: 0 – 2,000 s
Width Range: 10ns – 2,000s
Accuracy: 1 ns + 0.0001 x Delay
Resolution: 250 ps
Pulse Inhibit Delay: < 120 ns typical
Output Inhibit Delay: < 50 ns typical
Output Module Specifications:
TTL/Adjustable Dual Channel Output Module (Standard):
Output Impedance: 50 oHm
TTL/CMOS Mode:
Rise Time: 3 ns typ (10% – 90%)
Slew Rate: > 0.5 V/ns
Jitter: 50 ps RMS channel to channel
Adjustable Mode:
Output: 2.0 to 20 VDC into 1 k ohm; 1.0 to 10.0 VDC into 50 ohm
Output Resolution: 10 mV
Current: 200 mA typical, 400 mA (short pulses)
Rise Time: 15 ns typ @ 20 V (high imp); 25 ns typ @ 10 V (50 ohms) (10% – 90%)
Slew Rate: >0.1 V/ns
Overshoot: <100 mV + 10% of pulse amplitude
General:
Dimensions: 19” x 10” x 1.75” 6/12 ch; 19” x 10” x 3.50” 12/24 ch
Weight: 8 lbs
Power: 100 – 240 VAC 50/60 Hz <3 A
Fuse: (Qty 2) 630 mA, 250 V Time-lag
