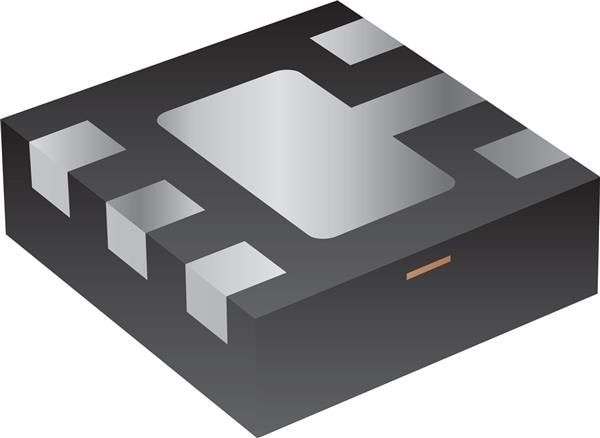

Bourns CDDFN6-0504P TVS Diodes TVS Diode Array 5VOLT
Manufacturer: Bourns Model: CDDFN6-0504P - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Polarity: Unidirectional
Unit Weight: 56 mg
Current Rating: 1 uA
Working Voltage: 5 V
Clamping Voltage: 12.5 V
Breakdown Voltage: 6 V
Termination Style: SMD/SMT
Moisture Sensitive: Yes
Number of Channels: 4 Channel
Vf - Forward Voltage: 1 V
Cd - Diode Capacitance: 1.6 pF
Ipp - Peak Pulse Current: 6.5 A
Operating Supply Voltage: 6 V
Vesd - Voltage ESD Air Gap: 30 kV
Vesd - Voltage ESD Contact: 30 kV
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
Pppm - Peak Pulse Power Dissipation: 150 W
