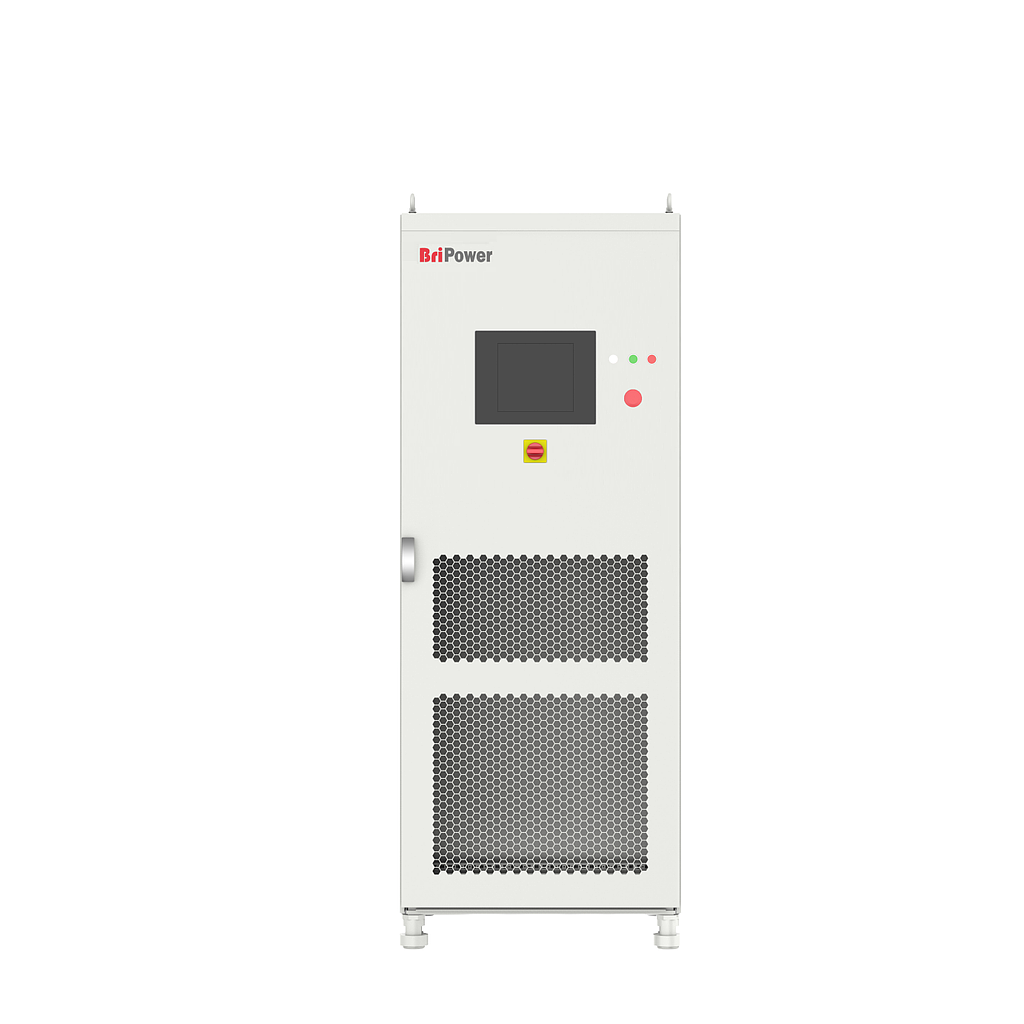

Bripower BSL 200-1500-266 High Power DC Power Supply/E-Load (200kW; 1500V; 266A)

Power: 200kW

Voltage: 1500V

Current: 266A

Dimension (W*D*H mm): 1800*900*1800

Weight (kg): 1600

AC Input

AC input Voltage: 3P+N+PE, 380VLL±10%(std)

Frequency: 47-63Hz

Efficiency: ≥90%

Power Factor: 0.95

THDi: ≤3%

Output

Output Modes: CV, CC, CP and CR

Load Regulation: 0.1%FS

Line Regulation: 0.1%FS

Voltage Ripple: 0.2%FS

Stability: 0.2%FS

Current Rise Time (0%~90%): <5ms

Current Rise Time (-90%~90%): <10ms

Voltage Regulation Time (0-100% Load change): <5ms

Power Accuracy: 0.3%FS

Voltage Accuracy: 0.1%FS

Current Accuracy: 0.3%FS

Power Resolution: 0.1kW

Voltage Resolution: 0.1V

Current Resolution: 0.1A

Measurements

Measurement accuracy Power: 0.3%FS

Measurement accuracy Voltage: 0.1%FS

Measurement accuracy Current: 0.3%FS

Others

Standard Interface: LAN/RS485

Protection: OVP, OCP, OPP, OTP

CE Conformity: EN 62040-1, EN 62040-2

Protection Level: IP21

Cooling: Forced Air Cooling

Temperature Operating: 0~40°C, Storage: -20~85°C

Operating Humidity: 20-90%RH (None Condensing)
