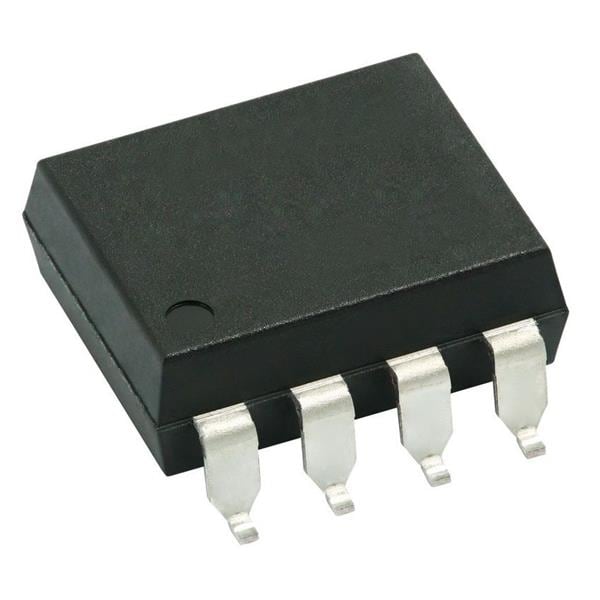

Broadcom HCPL-3180-360E High Speed Optocouplers 2.0A IGBT Gate Drive
Manufacturer: Broadcom Model: HCPL-3180-360E - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 6.35 mm
Height: 3.56 mm
Length: 9.65 mm
Fall Time: 25 ns
Rise Time: 25 ns
Output Type: Open Collector
Mounting Style: SMD/SMT
Output Current: 2.5 A
Isolation Voltage: 3750 Vrms
Number of Channels: 1 Channel
If - Forward Current: 16 mA
Vf - Forward Voltage: 1.8 V
Vr - Reverse Voltage: 5 V
Pd - Power Dissipation: 295 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
