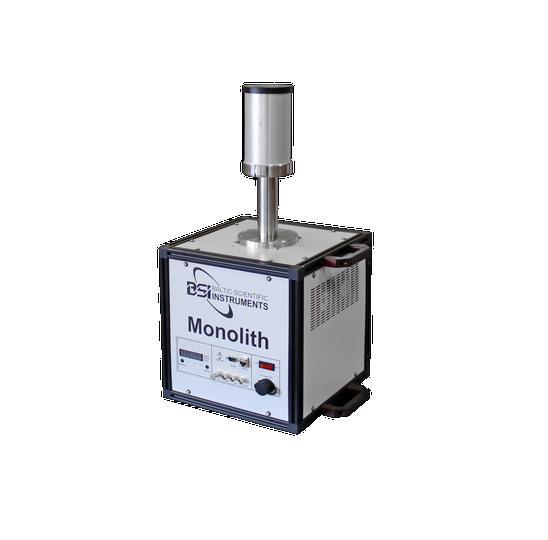

BSI MONOLITH Gamma & X-ray HPGe Spectrometer (3 keV - 3 MeV)

Parameter: Value

Relative efficiency (with respect to 3’’ x 3’’ NaI detector and Co-60 source mounted 25 cm above the detector) at 1.33 MeV g-photon: 0.3

Energy resolution:

at 122 keV: < 1000 eV

at 1.33 MeV: < 2000 eV

Peak to Compton ratio: 52:1

Energy range of detector operation: 3 keV - 3 MeV

Peak shape:

FWTM/FWHM: < 2

FW.02M/FWHM: < 3

Endcap window material: Al / Be / Carbon fibre

Cooling time of the detector, hours: < 13

Autonomous operation time, hours: 45497

Orientation in space: At any angle

AC Power supply: 230 V 50/60 Hz

Power consumption, max: 250 W

Power consumption, normal: 120 W

Range of the operating temperatures, ° С: 0 ... +40
