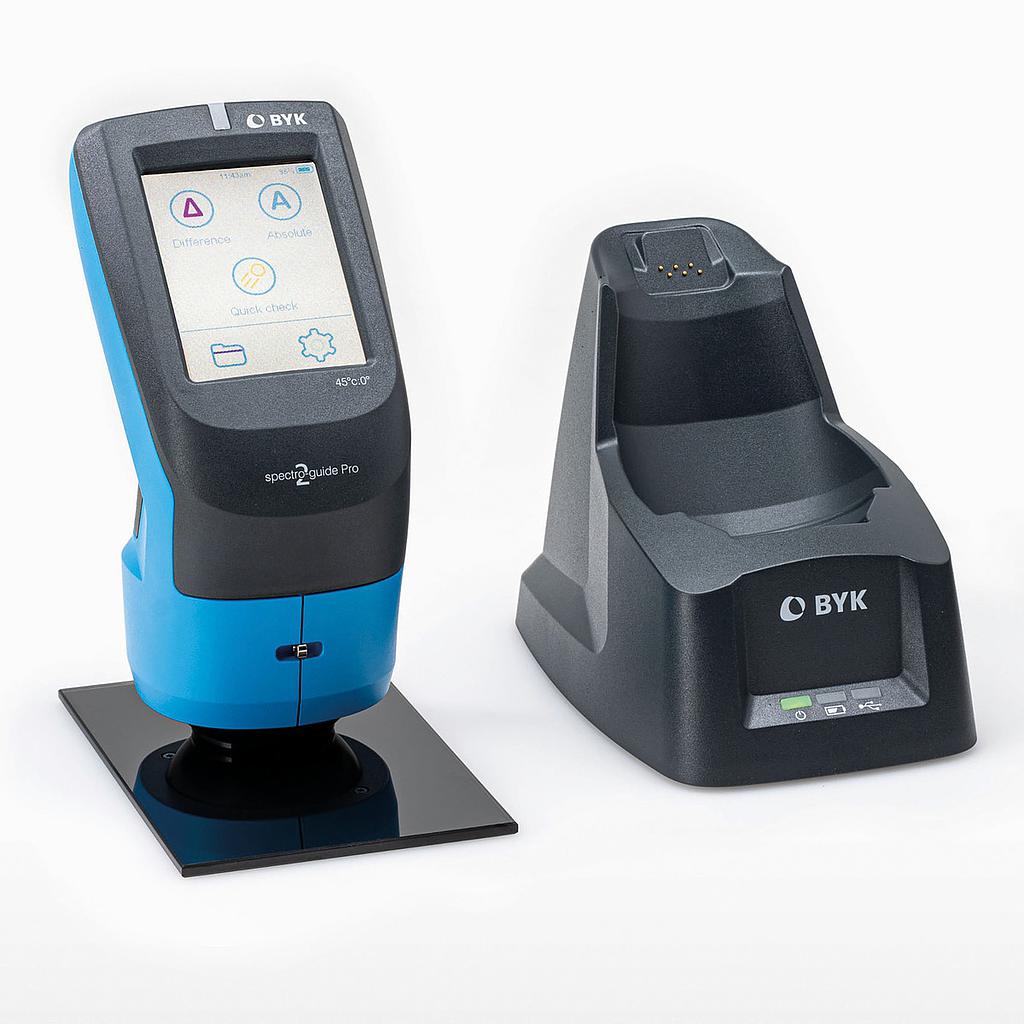

BYK spectro2guide Pro 45/0 Color & Jetness measurement with digital standards

Technical Properties

Measuring Capability: Color, Gloss, Fluroescence, Jetness

Color Measurement

Color Geometry: 45°c:0°

Sample Port: 12 mm

Measuring Area: 08 mm

Spectral Range Colorimetric: 400 - 700 nm, 10 nm resolution

Spectral Range Fluorescence: 340 - 760 nm, 10 nm resolution

Measurement Range: 0 - 170%  reflection

Repeatability Color: 0.01 ΔE94 (10 consecutive measurements on white)

Reproducibility Color: 0.1 ΔE94 (average of 12 BCRA II tiles)

Color Systems: CIELab/Ch, Lab(h), XYZ, Yxy

Color Differences: ΔE*; ΔE(h); ΔECMC; ΔE94; ΔE99; ΔE2000; E2000 PF; ΔE DIN6175-2019

Color Indices: YIE313, YID1925, WIE313, CIE, Berger, Color Strength, Opacity, Metamerism, Grayscale

Illuminants: A, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, UL30, CIE 015:2018 LED Illuminants

Observer: 2°, 10°

Fluorescent Indices: ΔE Fl, ΔEzero

Jetness Indices: MY, Mc, dM, GY, Gc, dG

Repeatability Jetness: Y ≤ ± 0.0005

Reproducibility Jetness: Y ≤ ± 0.003 (Y<0.5)

Gloss Measurement:

Repeatability Gloss 0-20: ± 0.1 GU

Repeatability Gloss 20-100: ± 0.2 GU

Reproducibility Gloss 0-20: ± 0.5 GU

Reproducibility Gloss 20-100: ± 1.0 GU

Gloss Geometry: 60°

Gloss Aperture: 5 x 10 mm

Measurement Range Gloss: 0 - 100 GU

General

Memory: 4.000 Standards and 10.000 Samples

Interface: USB port

Display: 3.5 " Color Touchscreen

Languages: English, German, French, Italian, Spanish, Russian, Japanese, Chinese

Power supply: Internal rechargeable battery

Power supply: 100 - 240 V, 50/60 Hz

Battery: 7.2 V, 2350 mAh, 16.92 Wh

Battery Capacity: 1200 readings

Weight: 0.7 kg

Weight: 1.5 lb

Operating temperature: 10 - 40 °C

Storing temperature: 0 - 60 °C

Operating temperature: 50 - 104 °F

Storing temperature: 32 - 140 °F

Relative humidity: Up to 85 % non-condensing at 35 °C (95 °F)

Dimensions: L x W x H: 8.7 x 11 x 18.8 cm

Dimensions: L x W x H: 3.4 x 4.3 x 7.4 in
