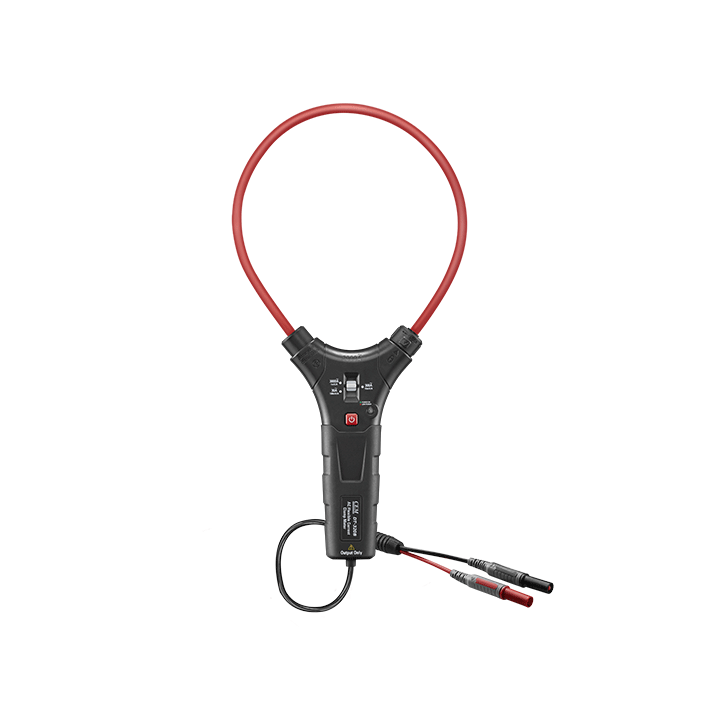

CEM DT-320BS AC Flex Clamp Adaptor (3000A AC, 254mm head cable)
Manufacturer: CEM Model: DT-320BS Origin: China Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
10”(254mm) head cable length(320BS)
Function: Max Range - Measurement Range - Basic Accuracy - Output Voltage
AC Current 50~400Hz
30A AC ; =30.00A ; 100mV/A ; ± 3.0%
300A AC ; 30.0A-300.0A ; 10mV/A ; ± 3.0%
3000A AC ; 300A-3000A ; 1mV/A ; ± 3.0%
Size(HxWxD): 180mm x 106mm x 28mm
Weight: 210g
Accessories: Gift box with carrying case, 1.5V AAA x 2 batteries.
Datasheet
Features |
18”(457mm) head cable length(320B) |
10”(254mm) head cable length (320BS) |
3000A AC current measurement |
Slide switch to change range |
Voltage output to universal voltage meters |
7.5mm coil diameter for tight space measurement |
2 meter extension cable |
Low Bart. LED indicator |
Ergonomically designed one hand operation |
CAT IV 600V/CAT III 1000V safety standard |
