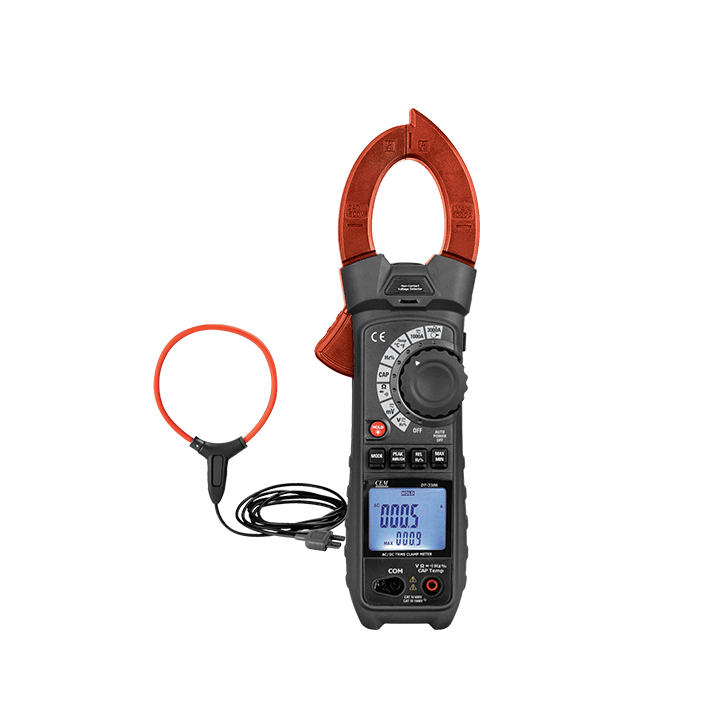

CEM DT-3386 Professional Heavy Duty AC/DC Autoranging Clamp Meters with Flexible Clamp (AC/DC-1000V/1000A True RMS)

Function: Max. Range - Basic Accuracy

Voltage DC: 1000V  ;  ±(0.1%+4d)

Voltage AC: 1000V  ;  ±(1.0%+3d)

Current DC: 1000A  ;  ±(2.5%+5d)

Current AC: 1000A  ;  ±(2.5%+5d)

Resistance: 50MΩ  ;  ±(3.0%+5d)

Temperature: 1000ºC/ 1832ºF  ;  ±(1.0%+2.5°C/4.5°F)

Capacitance: 5mF  ;  ±(3.5%+10d)

Frequency: 10MHz  ;  ±(0.3%+2d)

ACA flexible clamp: 3000A  ;  ±(2.8%+8d)

Size(HxWxD): 230mm x 76mm x 40mm

Weight: 315g


Accessories: Test leads, gift box with carrying case, Temperature probe and 9V battery.


Details

Datasheet


Features

3385

3386

Current measurement

AC

AC/DC

LCD display counts with backlight

50000

50000

3000A ACA Flexible clamp

*

*

AC True RMS

*

*

Flashlight

*

*

Data Hold & Peak Hold

*

*

Max /Min

*

*

REL (Zero) Function

*

*

Auto Power Off

*

*

Low battery indication

*

*

1.9” (48mm) Jaw opening

*

*

NCV Detection & flashlight

*

*

Inrush Current

*

*
