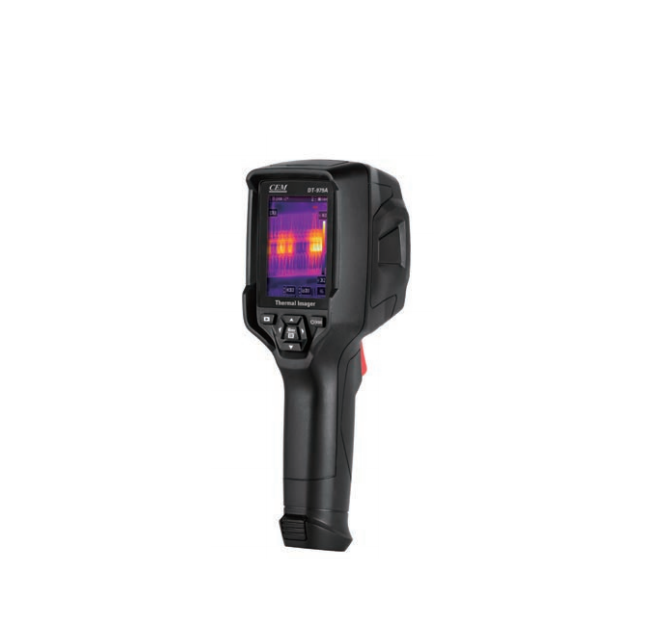

CEM DT-979E Industrial Thermal Imagers (-20°C-400°C,120x90)

Imaging and Optical Data

Field of View: 50x38°

Spatial Resolution: 1.79mrad

NETD: <0.1°C@30°C(80°F)/100mK

Image Frequency: 25Hz

Focus Mode: Focus free

Focal Plane Array(FPA), Spectral Range: Uncooled microbolometer/8-14um

IR Resolution: 120x90

Image Presentation

Display: 2.8" TFT LCD, 240x320 pixels

Color Palettes: IRON, RainBow, Grey, GreyInverted, Brown, Bluered, hot-cold, Feather

Measurement

Object Temperature Range: -20°C-400°C (-4°F-752°F)

Accuracy: +/-2°C(+/- 3.6°F) or +/-2% of reading

Measurement Analysis

Spotmeter: Center Spot

Automatic Hot/Cold Detection: Auto hot or cold markers

Storage of Images

Image Storage format: Bitmap(BMP),including measurement data.

Data Communication Interfaces: WiFi

Power System

Battery: Li-ion battery, 4 hours operating time

Input Voltage: DC 5V

Charging System: In camera(AC adapter)

Power Management: Automatic shutdown

Environmental Data

Operting Temperature Range: -20°C-50°C (-4°F-122°F)

Storage Temperature Range: -40°C-70°C (-40°F-158°F)

Humidity(operating and storage): 10%-90%

Drop test: 2m

Digitl camer: 2M pixel

Size(HxWxD):224mm x 72mm x 90mm

Weight:480g

Accessories:

Lens, Earphone(Optional), Battery, software CD-ROM, Wrist strap, micro SD card, Adaptor, USB cable & HDMI cable (Optional), Gift box
