Dimension(mm): 500*700*1195
PCB size（mm): 50*50-445*350
Speed: 0-9m/min adjustable
Power supply: AC 1P 220V
Power: Max.300VA
Air prssure: 4-6bar
Air xonsumption: Max.10L/Min
Transport height: 900±20mm(or customer specified)
PCB direction: L-R or R-L (optional)
Weight: 120kg

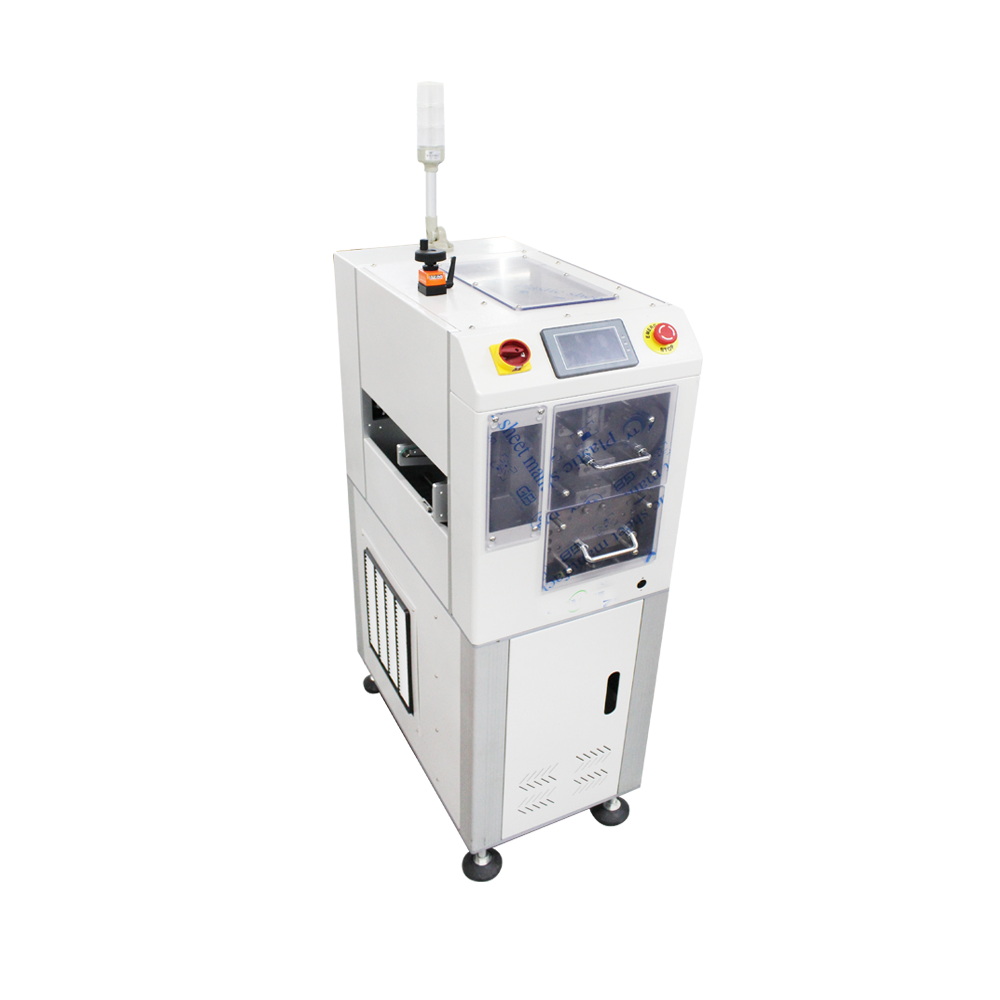

This unit can remove glass fiber, dust particles, etc. on top surface of PCB before solder paste printing, and improve production yield. Especially suitable for PCB which is mounted extremely small components.
Features
1.Touch screen controller, easy to operate.
2.Parallel and smooth width adjustment(leadscrew).

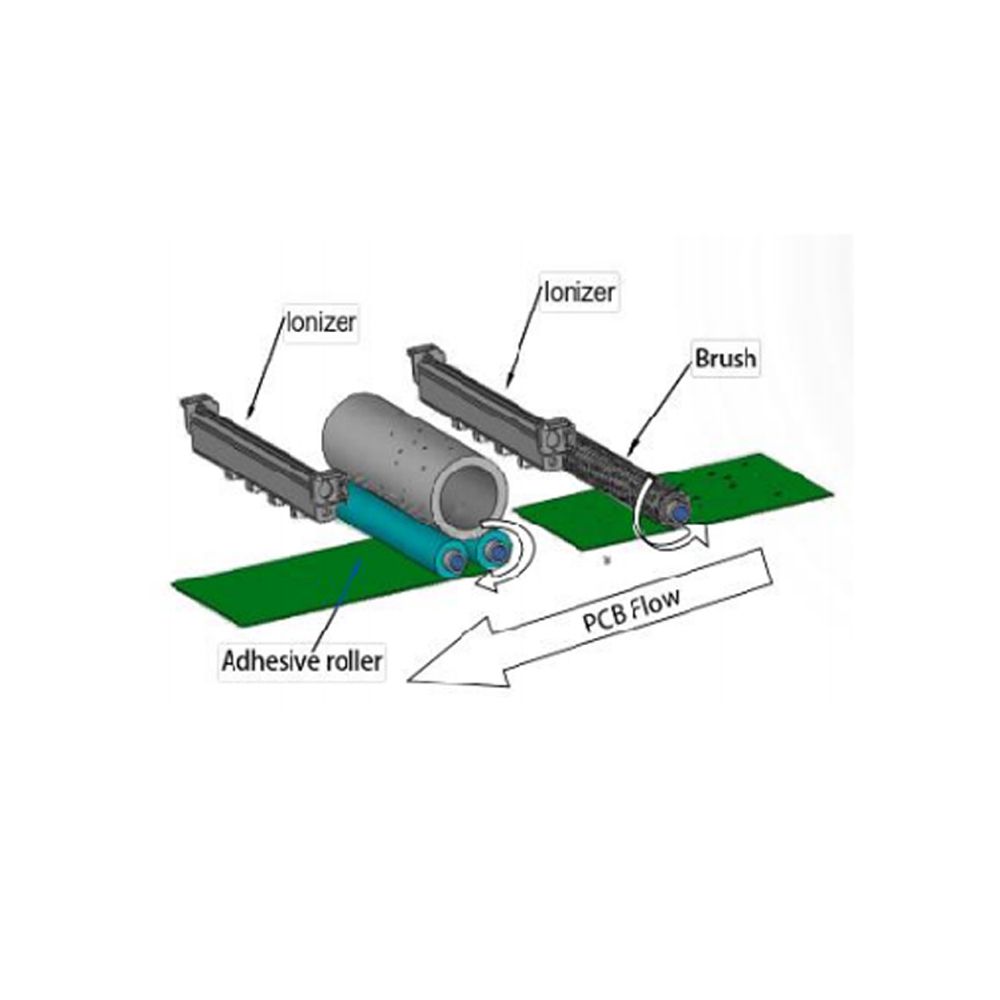

3.Multiple dust removal design: ion air rod (blowing ion air) +1 group of spiral brushes+vacuum system +1 group of dust sticking drum +.
4.vacuum dust collection, the dust removal efficiency can reach 99%.
5.Fully enclosed design ensures operational safety level.
6.Smaller footprint.
7.With SMEMA port.
