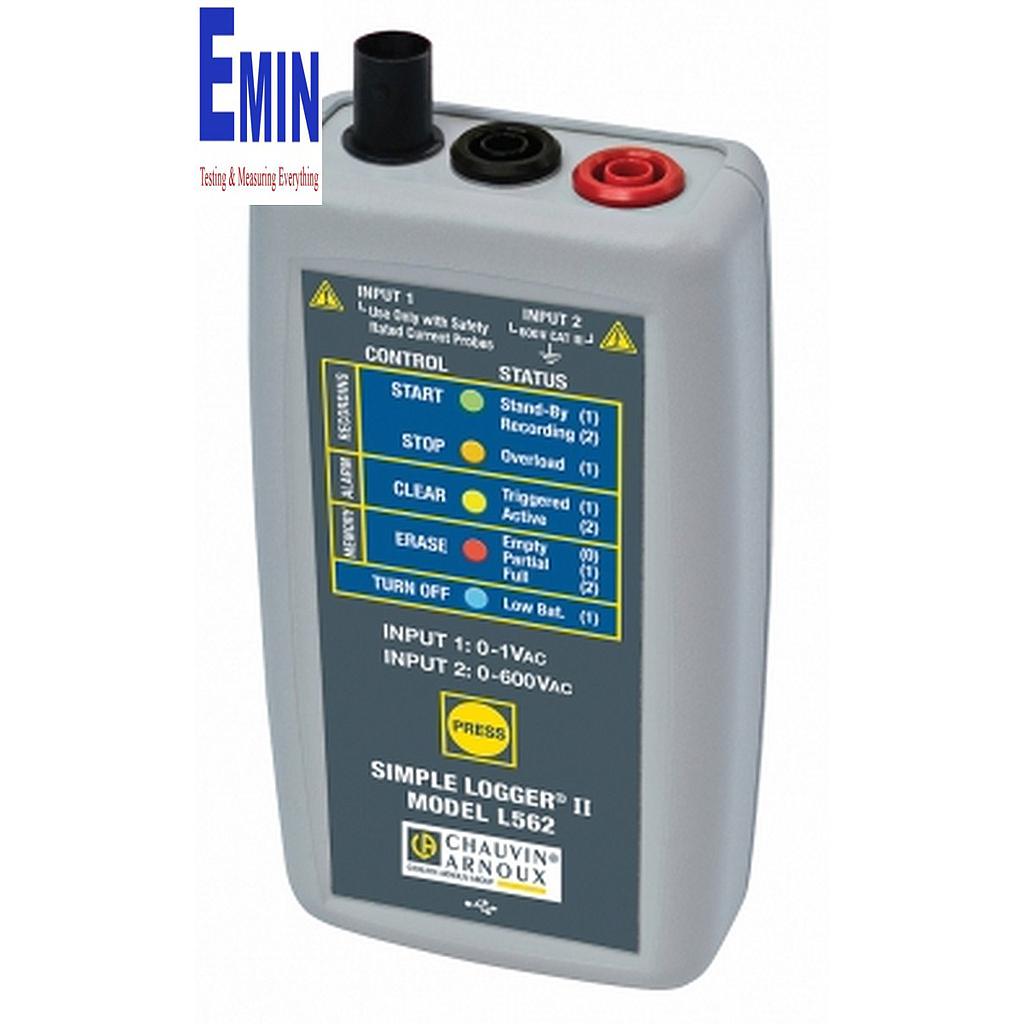

Manuafacturer: Chauvin Arnoux
Model : L562
Warranty : 12 month
Electrical Specification
- Channels: 1
- Current channel
+ Input connection: BNC
+ Voltage range: 0 - 1 VAc
+ Resolution: 0.1 mA
+ Accuracy (50/60 Hz)0 to 10 mV: unspecified ; 10 to 50 mV: ±(0.5 % R + 1 mV); 50 to 1000 mV: ±(0.5 % R + 0.5 mV)
- Voltage channel
+ Input connection: 2 recessed banana jacks
+ Voltage range: 0 - 600 VAc
+ Resolution: 0.1 V
+ Accuracy (50/60 Hz): 0 to 5 V: unspecified ; 5 to 50 V: ±(0.5 % R + 1 V); 50 to 600 V: ±(0.5 % R + 0.5 V)
- Sample rate: 64 samples/cycle
- Storage rate: Programmable from 125 ms to 1 day
- Storage modes: Stop when full, FIFO and Extended Recording Mode (XRM™)
- Recording length: 15 minutes to 8 weeks, programmable using DataView®
- Memory: 240,000 measurement (512 kB). The recorded data is stored in non-volatile memory & retained even if the battery is low or removed
- Communication: USB 2.0 optically isolated
- Power source: 2 x 1.5 V AA-cell alkaline batteries
- Battery life: 100 hours to > 45 days (depending on storage rate/recording length)
Mechanical Specification
- Dimensions: 136 x 70 x 32 mm (5.38 x 2.75 x 1.28")
- Max conductor size: Depends on current probe
- Weight (with battery): 180 g (6.4 oz)
- Casing: UL94-V0
- Vibration: IEC 60068-2-6 (1.5 mm, 10 to 55 Hz)
- Shock: IEC 60068-2-27 (30G)
- Drop: IEC 60068-2-32 (1 m)
Environment Specification
- Operating temperature: -10 to +50 °C
- Storage temperature: -20 to +60 °C
State at delivery: type A to 5-pin mini-B USB 2 m, DataView® CD, two 1.5 V AA-cell alkaline batteries and user manual.
