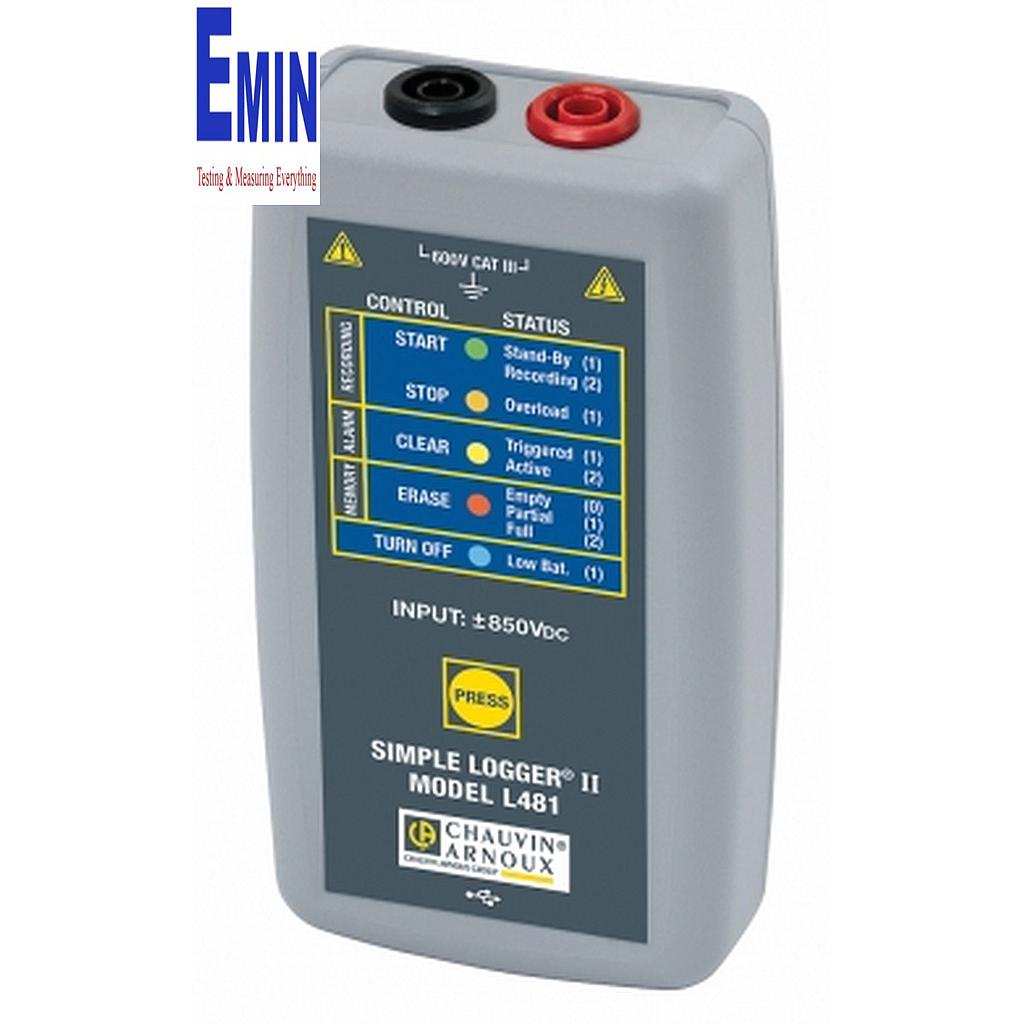

Manuafacturer: Chauvin Arnoux
Model : L481
Warranty : 12 month
Electrical Specification
- Channels: 1
- Input connection: Two recessed 4 mm safety banana jacks
- Input level: -850 Vdc- +850 Vdc
- Resolution: 0.1 mA
- Accuracy (50/60 Hz)0 to 10 mV: unspecified ; 5 to 50 V: ±(0.5 % R +1 V) – 50 to 850 V: ±(0.5 % R +0.5 V)
- Maximum input voltage: ±1020 Vdc
- Input impedance: > 150 kΩ
- Sample rate: Maximum of 8 per second
- Storage rate: Programmable from 125 ms to 1 day
- Storage modes: Start/Stop, FIFO and Extended Recording Mode (XRM™)
- Recording length: 15 minutes to 8 weeks, programmable using DataView®
- Memory: 240,000 measurement (512 kB). The recorded data is stored in non-volatile memory & retained even if the battery is low or removed
- Communication: USB 2.0 optically isolated
- Power source: 2 x 1.5 V AA-cell alkaline batteries
- Battery life: 100 hours to > 45 days (depending on storage rate/recording length)
Mechanical Specification
- Dimensions: 136 x 70 x 32 mm (5.38 x 2.75 x 1.28")
- Max conductor size: Depends on current probe
- Weight (with battery): 180 g (6.4 oz)
- Casing: UL94-V0
- Vibration: IEC 60068-2-6 (1.5 mm, 10 to 55 Hz)
- Shock: IEC 60068-2-27 (30G)
- Drop: IEC 60068-2-32 (1 m)
Environment Specification
- Operating temperature: -10 to +50 °C
- Storage temperature: -20 to +60 °C
State at delivery: delivered with a set of 2 voltage leads 152.4 cm (5 ft) long, with colour coding and a set of crocodile clips (red/black).
