Direct access to our certified experts
- Display: Without
- Installation types : Single-phase, split-phase, three-phase with or without neutral, and many other specific configurations
- Number of channels: 3 Voltage inputs / 3 Current inputs (neutral current calculated)
Measurements
- Network frequency: DC, 50 Hz, 60 Hz & 400 Hz
- Voltage (Measurement ranges/ Best accuracy): 10.00 to 1000 V AC/DC / +/- 0.2 % + 0.5 V
- Current (depending on sensors)(measurement ranges / best accuracy) :from 5 mAAC to 10 kAAC / 50 mADC to 1,4 kADC / ±0.5 %
Calculated measurements
- Ratios: Up to 650,000 V / up to 25,000 A
- Power: 10 W to 10 GW / 10 var to 10 Gvar / 10 VA to 10 GVA
- Energy: Up to 4 EWh / 4 EVAh / 4 Evarh (E = 1018 )
- Phase : cos φ, tan φ, PF
- Harmonics: Up to 50th order
Additional functions
- Phase order: Ye s
- Min / Max: Ye s
- Mounting: Magnet, hook
Recording
- Sampling / Acquisition rate / Aggregation: 128 samples/period - 1 measurement/s – from 1 min to 60 min
- Storage: SD Card, 8 GB (SD-HC Card up to 32 GB)
- Communication: Ethernet & Bluetooth
- Power supply: 110 V - 250 V (+10 %, -15 %) @ 50-60 Hz & 400 Hz
- Safety: IEC 61010 600 V CAT IV – 1,000 V CAT III
Mechanical specifications
- Dimensions: 256 x 125 x 37 mm without sensor
- Weight: 950 g
Casing: IP54 , ETL
State at delivery: PEL102 , 3 MA193 (250mm, 10kA) 4 measurement leads (straight banana / straight banana – 3 m long – black), 4 crocodile clips (black), 1 SD card (8 GB), 1 set of rings and inserts (for ends of leads and current sensors), 1 mains cable, 1 USB cable (Type A / Type B), 1 MultiFIX mounting systems, 1 operating manual (on CD), 1 bag, 1 safety datasheet, PEL Transfer PC software, 1 quick start-up guide, 1 SD MN adapter (depending on model).
Accessories:
- DataVIEW® software P01102095
-Bag No 23 P01298078
-Leads/clamps kit P01295476
-Set of id. rings/inserts P01102080
-5 A box AP01101959
-PEL100 mains adapter 100P01102134
-MultiFIX P01102100Z
-Mains power cable P01295174
-Reeling Box P01102149
PEL Android application / NEW VERSION V 1.8.25 now including MOTOR measurement applications
datasheet
user guider
catalog vietnamese
catalog english

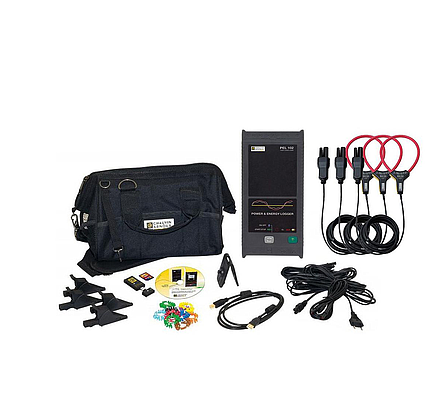

Ergonomic, magnetized and suitable for all types of cabinets, PEL102 loggers provide all the power and energy measurements simultaneously.
