Direct access to our certified experts
Size (W×D×H, mm) :
+Outer: 1800×1200×2650
+Inner: 1595×870×2385
Material:
+Outer: Steel Plate (Epoxy Powder Coated)
+Inner: Phenolic Laminate
+Sash: Tempered Glass 5 mm
Types of Sashes: 2-tier Vertical Sash (option : 2-tier Combination Sash)
Power Socket: 220V X 4EA (Left, Right 2EA each)
Lamp (LED): 30 W × 1 EA
Controller: ON/OFF Switch
Earth Leakage Breaker Ceiling Voltage Distribution Box (Including Terminal Block & Earth Leakage Breaker) (option : Front Earth Leakage Breaker)
Valves: Water×1EA, N₂×1EA (Option: Additional Valve 4EA)
Exhaust Port: PVC Ø250 (option : PVC Ø300 / P.P. Ø250, Ø300)
Power Consumption: 30 W
Option
· Movable Workbench (Low Work In)
· Sash Safety Film
· Wall STS Cup Sink
· Blower
Size for use with lab bench and equipment

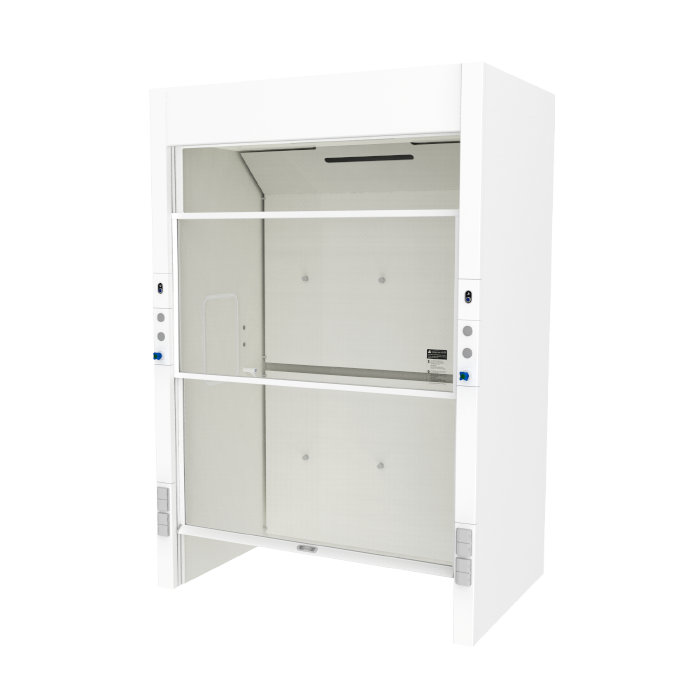

Work-in hoods are used when you need to do experiments that require the use of a laboratory or large equipment.
Designing an optimized fluid flow
For the safe discharge of contaminants in the fume hood, the fluid flow is optimized by designing the delicate internal structure using the CFD fluid program.
CHC Monitor
By applying an optimized self-developed monitoring system to the fume hood of CHC LAB, the wind speed of the fume hood is measured in real-time and the status is delivered to the user.
Emergency discharge system (CHC VAV Controller application options)
Through the Emergency Discharge function, it is possible to quickly discharge the internal air to the outside by increasing the discharge air volume in the event of an emergency, such as the generation of a large amount of harmful gas.
Safety Sash Stopper & Guard
By artificially stopping the sash at an appropriate height of 500mm, it prevents exposure to harmful substances due to sudden openings.
