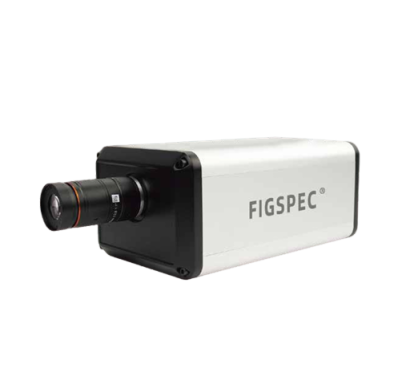

CHN SPEC FS-24 Imaging Hyperspectral Cameras (400~1700nm, 1280×1280)

Spectroscopic method: Grating

Imaging resolution: 1280×1280

Dynamic range: 12 bits

Imaging speed: 100fps

Spectral channels number: 680

Spectral region: 400–1700nm

Spectral FWHM: 13nm

Slit width: 25um

Transmission efficiency: 60%

Stray light level: 0.5%

Pixel size: 5um × 5um

Detector type: InGaAs

Sensor imaging surface size: /

Standard lens focal length: 16mm

Minimum working distance: 100mm～∞

Field angle: 22.6°

Minimum exposure time: /

Maximum exposure time: /

SNR: 600/1

Data interface: USB3.0

Camera lens interface: C-Mount

Accessories: Lens, USB3.0 data cable, power adapter

Imaging features: ROI function, can realize multiple area ROI

Auxiliary imaging features: Auxiliary framing camera to monitor the shooting area

Power supply mode: Built-in battery
