Chuang Wei CWPL PCB Punching Machine | EMIN.ASIA

PCB Depaneling Equipment
Chuang Wei CWPL PCB Punching Machine

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

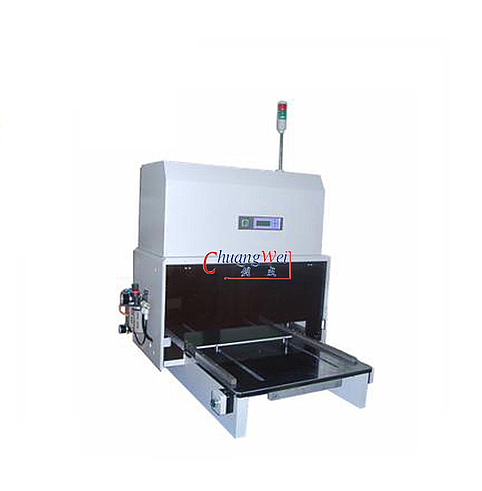

Product image

Chuang Wei CWPL PCB Punching Machine

ManufacturerChuangwei(View more products from this manufacturer)

ModelCWPL

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Working area: 460*320mm
Working pressure: 0.45-0.7Mpa
Machine dimension: 930*880*1230mm
Cutting precision: ±0.05mm
Cycle time: 7.5s/cycle
Weight: 650KG
Output: 8T
PCB/FPC thickness: 0.08-3.5MM
PCB/FPC material: FPC, FR1, FR4, CEM-1, CEM-3, MCPCB
Cutting mode: Punching
Punch fixture: Die tooling(mold)
Working Property: LCD display, Automatically records the number of processed products, automatic punching
Transmission port: International standard
Instruction system: International standard instruction system
Operation Language: English
Stroke: 50MM
Mold height: 130MM
Shut height: 80MM
Flat area: 530*320MM
Flat thickness: 38MM
Power: 380/220V
Fuse : 3A
Composition: Punching machine, Air cylinder, Ottomans, etc

Features:

1) Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks

caused by manual.

2) Die toolings is changeable

3) Easy set up of punching dies

4) Loading and unloading PCBs is convenient

5) Easy operation, has safe protection system

6) Air cylinder driven
