Size: 1900 × 2280 ×1585mm
Working Height: 920±50mm
Weight: 3000kg
Power Supply: AC 220V,50/60HZ
Capacity: 3.0KW
Air Pressure: 5kg/cm2
Working Platform: Max:1550mm*630mm
Thickness: 0.3~3.2mm
Blade spec
Outer Dia：φ120mm; Inner Dia：φ25.4mm
Positioning Dowel: Dia:2MM（7PCS）
Min Distance between the first V score line & Pin hole: 4.5MM
Blade thickness: 2mm
V-groove Residual thickness accuracy: ±2mil
V-groove Pitch accuracy: ±2mil
V-groove Parallel precision: ±2mil
Blade Cutting Speed: 6,000R.P.M.
Cutting Speed: 0~50m/min
Displace SpeedMax : 70M/MIN
Dust Collector: 2in plumbing3.5KW

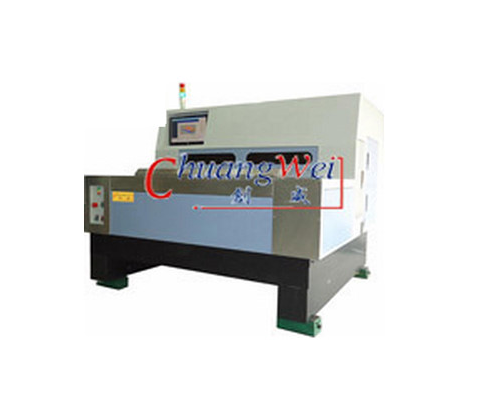

Automatic CNC V-Cut Machine PCB Building Digital Prototyping System
1. CWV-3A1200,V-CUT Machine Features:
1. According to PCB / MCPCB automatic V-CUT machine characteristics involving multiple disciplines, building PCB / MCPCB automatic V-CUT machine digital prototyping system that uses multidisciplinary joint design and simulation in the design stage of the product's features and performance for checking and testing, product performance to meet the design targets, resolve conflicts and interference between the various disciplines to achieve optimal coupling, which will greatly improve the product quality and system performance.
2. All of the base of the machine using the "Tarzan Qing" or "Jinan Qing" granite, and force the elimination of experience, strong rigidity, good stability.
3. X Y Z axis positioning drive using imported high-performance AC servo motor drive, to achieve a high-speed high-precision positioning and effectively increase productivity.
4. Precision Transmission and guiding system: imported precision linear guide and precision ball screw, high precision gear, location.
5. With dagger functions for complex PCB / MCPCB jump knife Processing
6. Available for high-precision machining for various sizes of V-groove board 0.4 ~ 3.2mm different thickness of boards
7. The first knife into the center of the nail PIN 4.5mm above the minimum reserve
8. The minimum diameter of a knife grinding 114MM, the highest tool life
9. Using WINDOWS Chinese operation interface, as data processing and item number management.
10. Suitable for single and double sided, multilayer, forming the front surface of the aluminum plate board use.
11. During V-CUT processing, with automatic gauge control, residual thickness detection function.
12. Japan's imports of high-speed spindle motor, V groove cut no edges, longer tool life
13. Use intelligent control systems, uninterrupted, stable operation, easy to difficult to fault repair.
14. Knives, knife deep graphical numerical control, high precision, easy to learn, easy to set up the whole.
15. Enter the information at the same time having AB, artificial steering, primary processing.
16. Available (optional) highly efficient dust collection system, which can be kept clean workshop environment.
