Chuang Wei CWV-680 V-Scoring Machine | EMIN.ASIA

PCB Depaneling Equipment
Chuang Wei CWV-680 V-Scoring Machine

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

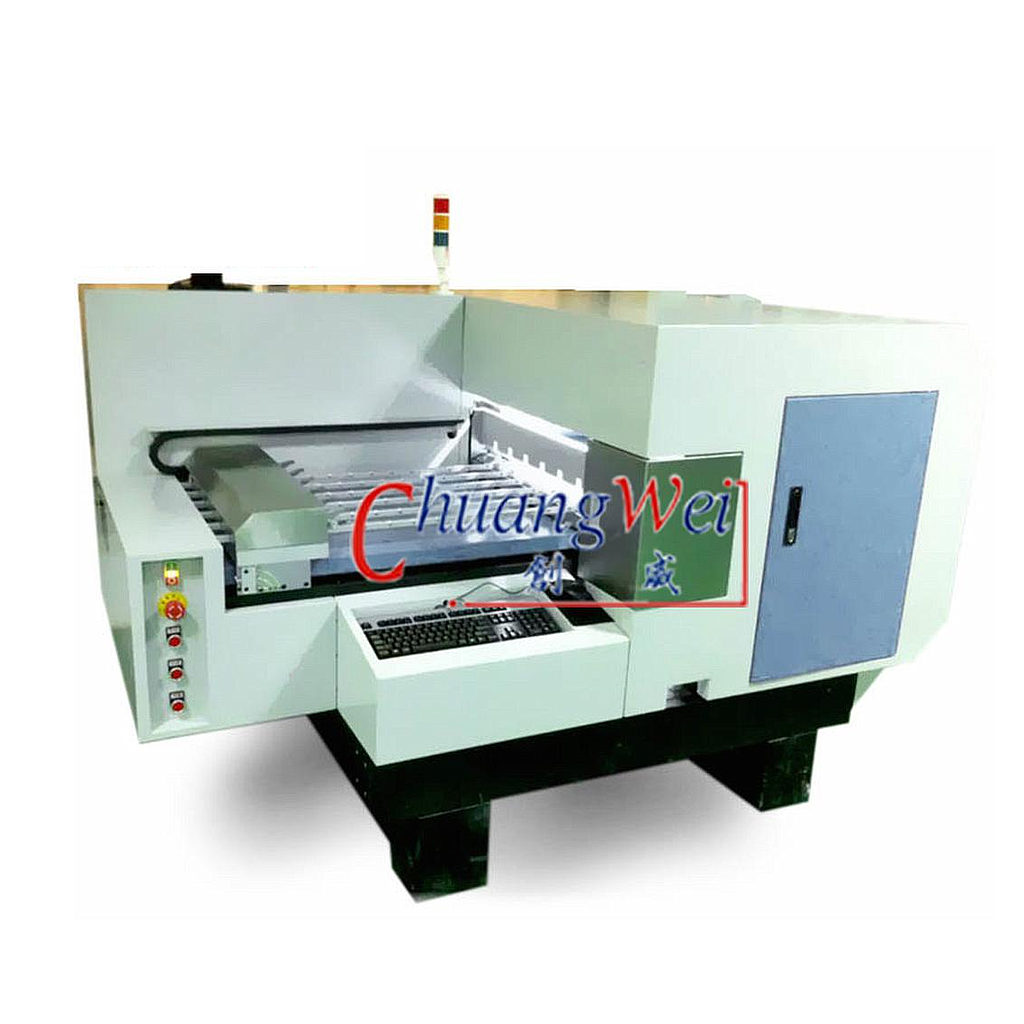

Product image

Chuang Wei CWV-680 V-Scoring Machine

ManufacturerChuangwei(View more products from this manufacturer)

ModelCWV-680

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Size: 1200 × 2280 ×1585mmL*W*H
Working Height: 920±50mm
Weight: 3000kg
Power Supply: AC 220V,50/60HZ
Capacity: 3.0KW
Air Pressure: 5kg/cm2
Working PlatformMax:680mm*630mm
Thickness: 0.3~3.2mm
Blade spec
Outer Dia：φ120mm; Inner Dia：φ25.4mm
Positioning Dowel: Dia:2MM（7PCS）
Min Distance between the first V score line & Pin hole: 4.5MM
Blade thickness: 2mm
V-groove Residual thickness accuracy: ±2mil
V-groove Pitch accuracy: ±2mil
V-groove Parallel precision: ±2mil
Blade Cutting Speed: 6,000R.P.M.
Cutting Speed: 0~50m/min
Displace SpeedMax : 70M/MIN
Dust Collector: 2in plumbing3.5KW

V-cut Scoring Machine,SMTfly-680Feature:

1.Microsoft Windows XP based software for data processing and parts management.

2.Heavy cutting, high precision and high stability without burr. Suitable in Single‐Double sided, Multi‐layer, Rigid‐Flex PCB, Aluminum PCB, Copper PCB, and Non‐metal PCB.

3.Large working table: 630mm x 680mm. PCB thickness: 0.3mm ~ 3.2mm.

4.Use HY1400 motion control card mechanical control, to obtain better stability, safer, low breakdown rate and easy maintenance.

5.Cutter position and depth use graphical numerical control to maintain high accuracy, easy to operate and easy to adjust.

6.Diamond cutter is used.

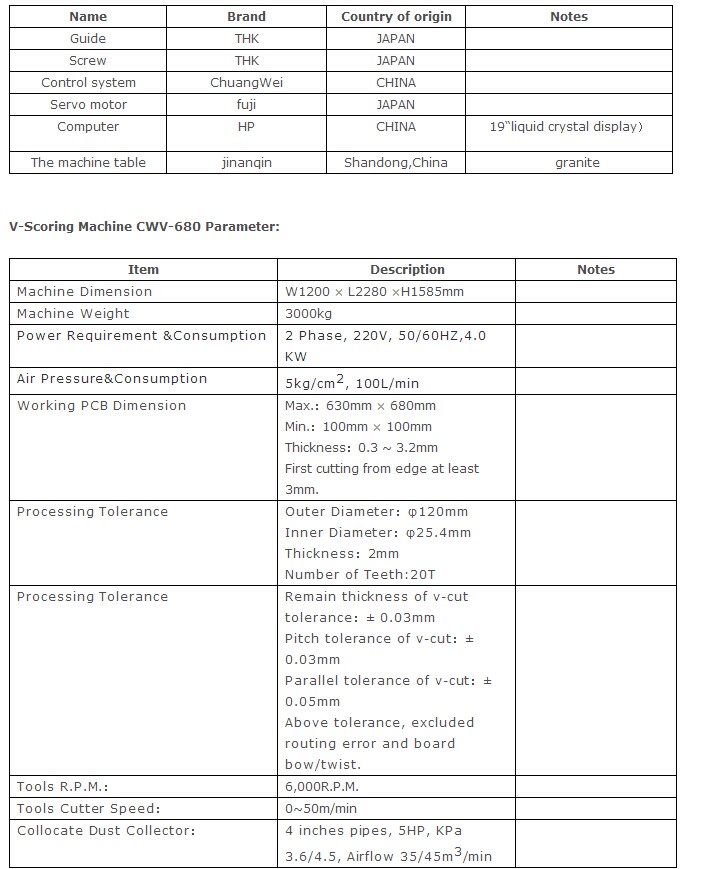

20160726084208_45510
