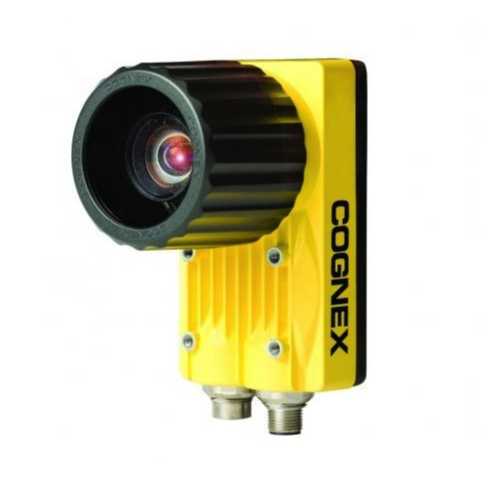

Cognex In-Sight 5600/5705 Vision Systems (2448 x 2048; 2/3-inch CCD)

GUI interface: Spreadsheet and EasyBuilder

Firmware: In-Sight Explorer 5.1.0 or later

Storage Capacity: 128MB fixed flash memory (unlimited via remote network device)

Ram: 512 MB SDRAM

Sensor: 2/3-inch CCD, global shutter

Lenses: C-mount

Resolution: 2448 x 2048

Acquisition Rate: 16 fps

Discrete Inputs: 1 opto-isolated, acquisition trigger input. Additional inputs available using a compatible I/O module. Unlimited inputs when using an Ethernet I/O system

Discrete outputs: 2 built-in, high-speed outputs. Additional outputs available using a compatible I/O module. Unlimited outputs when using an Ethernet I/O system

Status LEDs: Power, Network Status, Network Traffic, 2 user configurable

Connection: RS-232C

Power Supply: 24VDC ±10%, maximum 600mA

Dimensions (L x W x H): 134.4mm (5.29in) x 124.1mm (4.88in) x 61.4mm (2.42in) with lens

Standard: IP67 with included lens
