Measured value: Temperature, Relative humidity, Counted values (dew point…), Current, Voltage, Two-state signal, Frequency, Resistance, Event logging
Operating temperature: 0 to +50 °C
Channels: 1 to 16 inputs - software configurable
Memory: 2MB (up to 480 000 values)
Memory type: internal SRAM, backed-up by Lithium battery
Recording interval: adjustable individually for all input channels from 1 second to 24 hours
Recording interval: noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock: year, leap year, month, day, hour, minute, second, backed-up by Lithium battery
Resolution of the AD converter (analog channels): 16 bits, conversion duration approximately 60ms/channel
Communication speed: 9600, 19200, 57600, 115200 Bd, 230400* Bd (* pro USB, Ethernet)
Communication protocol: www, XML, SNMP, SOAP, ModbusTCP
Alarm protocols: email, SNMP trap, Syslog
Power: 24 Vdc
Protection class:IP20
Dimensions (including connectors): 225 x 230 x 44 mm - one rack unit 1U
Dimensions without rack holders: 225 x 230 x 44 mm - one rack unit 1U
Weight: approx. 800 g
Included in delivery:
MS6R
Instruction Manual
Traceable Calibration Certificate
USB Cable
COMET Cloud for 3 Months (if the optional Ethernet communication is connected)
Ethernet interface

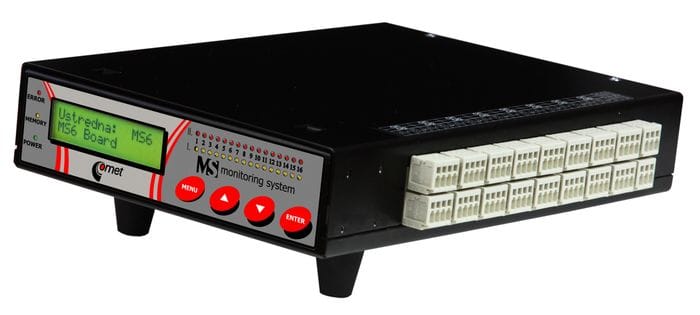

The complete solution for monitoring of temperature, humidity, pressure, CO2, voltage, current, pulses, events and other signals. Universal configurable inputs and outputs. For desktop use with rubber feet - see Optional accessories. For mounting to 19" rack - one rack unit 1U.
Data loggers are designed for measuring, recording, evaluation and subsequent processing of input electrical signals, which are subject to relatively slow changes (> 1s). In conjunction with the appropriate sensors and transducers are suitable for monitoring physical quantities.
