Temperature range: -40 to 100 ℃
JTM K07
Temperature fluctuation (100.0℃ or lower): ±0.3 ℃
Temperature fluctuation (100.1℃ or higher): -
Temperature gradient (100.0℃ or lower): 3.0 ℃
Temperature gradient (100.1℃ or higher): -
Spatial temperature deviation (100.0℃ or lower): 1.5 ℃
Spatial temperature deviation (100.1℃ or higher): -
Temperature change rate (Drop): 3.0℃/min. (86 to -26℃)
Temperature change rate (Rise): 3.0℃/min. (-26 to 86℃)
Time to reach temperature extreme (Drop): Within 40 min. (20 to -40℃)
Time to reach temperature extreme (Rise): Within 30 min. (20 to 100℃)
Exterior: Stainless steel plate (SUS430, hairline finish)

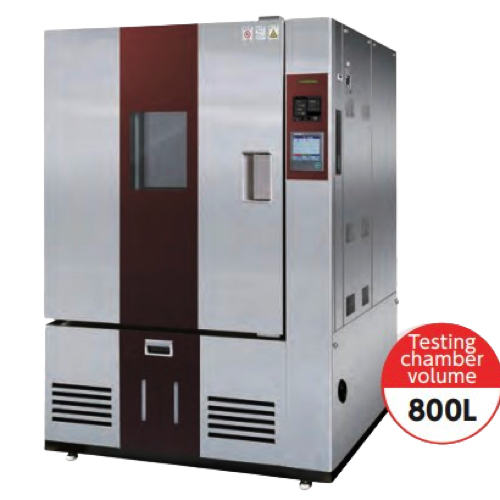

Testing chamber volume: 800 (Width 1000 x Depth 800 x Height 1000)
Product dimensions: Width 1,400 × Depth 1,170 × Height 1,795
Controller: Operation modes: Set-point or program operation (Steps: 20 per pattern, Repetitions: Max. 98 and infinite)
Safeguards: Earth leakage circuit breaker, operation circuit fuse, electric motor overload safeguard, high-voltage shutdown system, excess temperature increase prevention system, heater overcurrent safeguard, etc.
Compressor: Type: Scroll + scroll; Output: 0.6 kW (inverter control) + 1.5 kW
Equipment: Observation window, cable hole, chamber light, casters, level adjusters, USB port, etc.
Accessories: Instruction manual and soft silicon plug for cable hole
Power supply: Three-phase 200V 50/60Hz, Three-phase 220V 60Hz, Three-phase 380V 50Hz
Maximum load current: 29 A
Product weight: 515 kg
