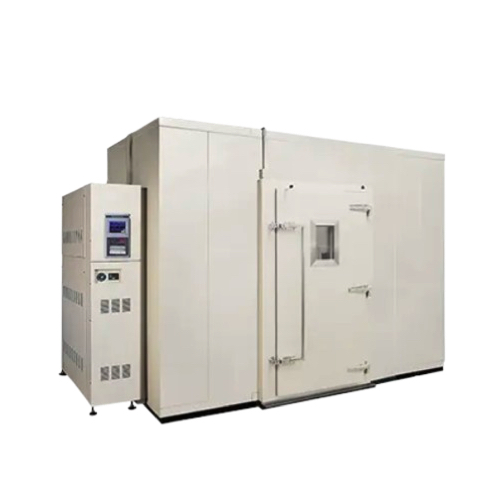

Walk-in type temperature and humidity chambers: Water-cooling
Temperature range: -30 ~ 80 °C
JTM K07
Temperature/humidity fluctuation: ±0.3 °C
Temperature/humidity gradient: ±2.5 °C
Spatial temperature/humidity deviation: ±2.0 °C
Temperature change rate (Rise): 2°C/min. (-19 ~ 69°C)
Temperature change rate (Drop): 1.2°C/min. (69 ~ -19°C)
Time to reach extreme temperatures (Rise): Within 70 min. (20 ~ 80°C)
Time to reach extreme temperatures (Drop): Within 110 min. (20 ~ -30°C)
Testing room floor space: 16.2 m²
External dimensions (W x D x H): 4500 x 3600 x 2325 mm
Internal dimensions (W x D x H): 4350 x 3450 x 2100 mm
Exterior/interior materials: Color steel plate (ivory) / stainless steel plate
Floor load capacity: 5.9 kN/m²
Door (width x height): 830 x 1,800 single opening, 1 location
Observation window (W x H): 190 x 320 door area, 1 location
Inner light (60 W capacity): 3 Qty.
Cable hole: ø50, 1 location (with rubber plug)
Temperature (humidity) control unit: EU-65HT × 2
Defrosting method: Off－cycle defrosting (refrigerator operation stopped, room temperature 5 to 40℃), temperature－increase defrosting (room temperature －10 to 5℃)
Power supply: Three-phase 200V 50/60Hz
Maximum load current: 45× 2 A
ELB capacity: 75× 2 A
Coolant
Water volume: 2400× 2 L/h
Water pressure: 0.1 to 0.5 MPa
Water temperature: 18 to 32 °C
Piping dimensions inlet/outlet: Rc1× 2 / Rc1× 2
