CRYSOUND CRY725D Pneumatic Acoustic Test Chamber (AC 100-240V, 50/60Hz, >5kg/cm2)
Manufacturer: CRYSOUND Model: CRY725D - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specifications
Weight: About 830kg
Outer dimension: 860(L)*860(W)*1833(H)mm
Inner dimension: 450(L)*600(W)*515(H)mm
Electrical Specifications
Operating voltage: AC 100-240V, 50/60Hz
Rated power: 15W
Pneumatic pressure: >5kg/cm2
Shielding and Soundproofing Performance
RF shielding performance: 0.8~6GHz>70dB (Without I/O interface)
Audio isolation performance: 100Hz～160Hz>32dB, 200Hz～250Hz>35dB, 315Hz～400 Hz>40dB, 500Hz～800Hz>45dB, 1000Hz～4000Hz>53dB, 5000Hz～8000Hz>60dB, 10000Hz～20000Hz>65dB (1/3 octave)
Noise floor: 20dBA, exterior noise≤80dBA (No shock or vibration)

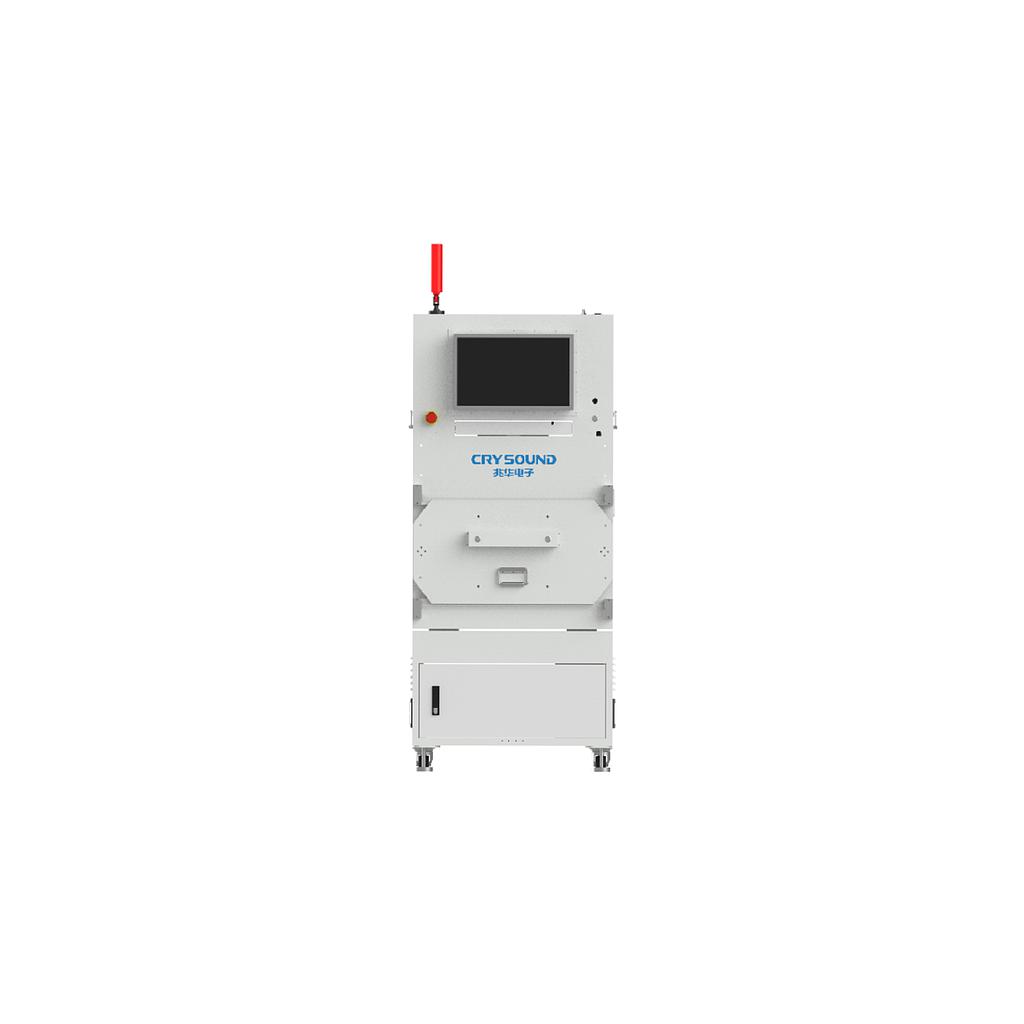

The CRY725D is a pneumatic, drawer-style acoustic test chamber that offers superior soundproofing at low frequencies compared to the CRY725 model. This makes it particularly effective for background noise measurement. When combined with the CRY6151B and CRY algorithm, the CRY725D provides an enhanced solution for minimizing noise floor interference, making it an excellent choice for precision testing on production lines.
