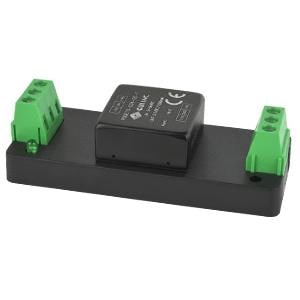

CUI Inc PDQE10-Q24-S15-T Isolated 10W 9-36Vin 15V 667mA Iso Reg Chssis
Manufacturer: CUI Inc Model: PDQE10-Q24-S15-T - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 31.5 mm
Height: 21.2 mm
Length: 76 mm
Industry: Industrial
Adjust Type: Fixed
Application: Datacom, Microcontrollers, Portable Electronics
Unit Weight: 35 g
Output Power: 10 W
Input Voltage: 9 V to 36 V
Mounting Style: Chassis
Isolation Voltage: 1.5 kV
Number of Outputs: 1 Output
Input Voltage - Max: 36 V
Input Voltage - Min: 9 V
Input Voltage, Nominal: 24 V
Output Current-Channel 1: 667 mA
Output Voltage-Channel 1: 15 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
