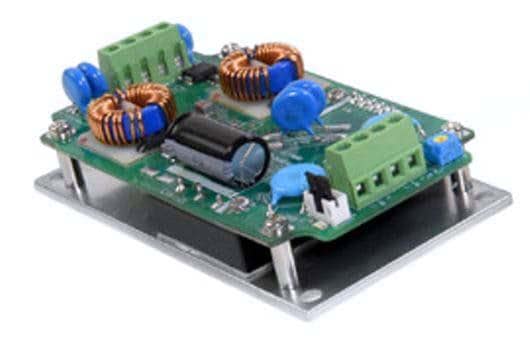

CUI Inc PST50W-36-S24B-O DC/DC Converters dc-dc isolated, 50W, 9.5-75 Vdc input, 24 Vdc, 2.08 A, single regulated output, chassis mount, open-frame
Manufacturer: CUI Inc Model: PST50W-36-S24B-O - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 61 mm
Height: 37 mm
Length: 116.8 mm
Industry: Industrial
Dimensions: 116.8 mm x 61 mm x 37 mm
Output Power: 50 W
Input Voltage: 9.5 V to 75 V
Mounting Style: Chassis
Isolation Voltage: 3 kVAC, 4.2 kVDC
Number of Outputs: 1 Output
Input Voltage - Max: 75 V
Input Voltage - Min: 9.5 V
Input Voltage, Nominal: 36 V
Output Current-Channel 1: 2.08 A
Output Voltage-Channel 1: 24 V
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
