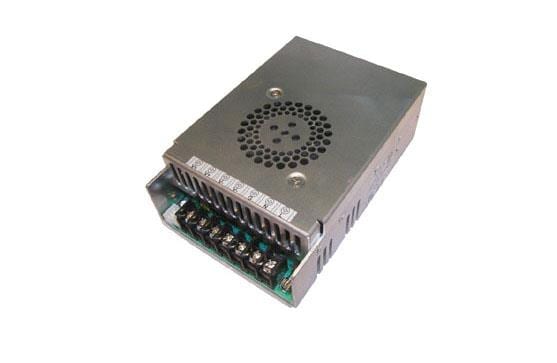

CUI Inc VF-S320-24A-CF-1 AC-DC Converter ac-dc, 320 W, 24 Vdc, single output, metal case w/ top fan, low leakage

Width: 101.6 mm (4 in)

Height: 39.3 mm (1.547 in)

Length: 177.8 mm (7 in)

Industry: Industrial

Approvals: CB, CE, EN61000-3, IEC61000-4, TUV 60950-1, UL/cUL, UL60950-1

Compliance: CB, CE, EN 61000-3, IEC 61000-4, TUV 60950-1, UL/cUL, UL 60950-1

Efficiency: 83 %

Output Power: 320 W

Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC

Mounting Style: Chassis

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 13.33 A

Output Voltage-Channel 1: 24 VDC

Operating Temperature Range: 0 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: 0 C
